1966 Ford Mustang ONE OF A KIND for sale in San Ramon CA

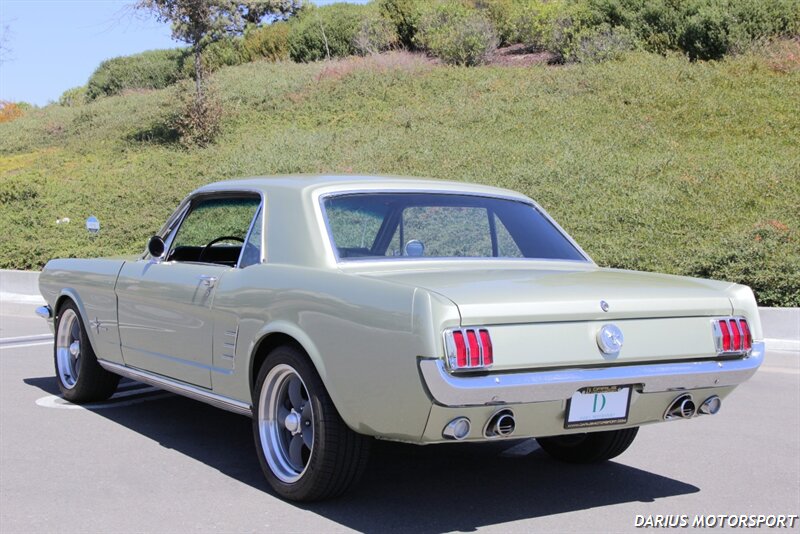

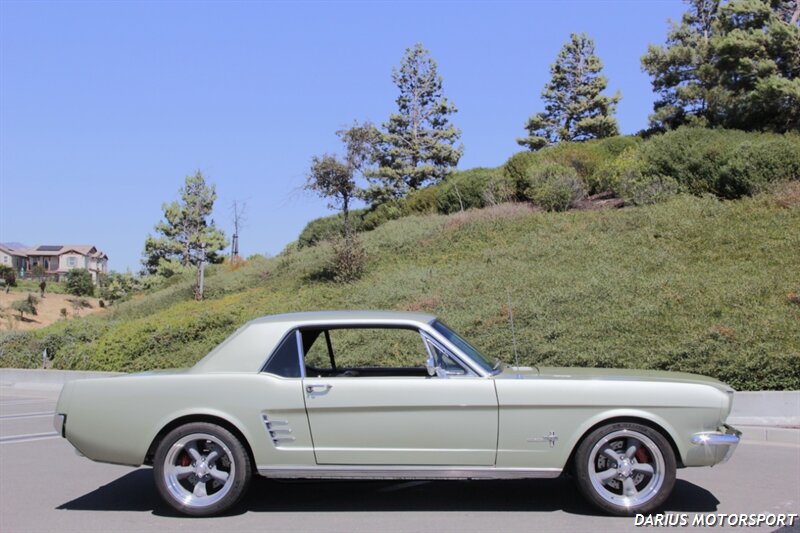

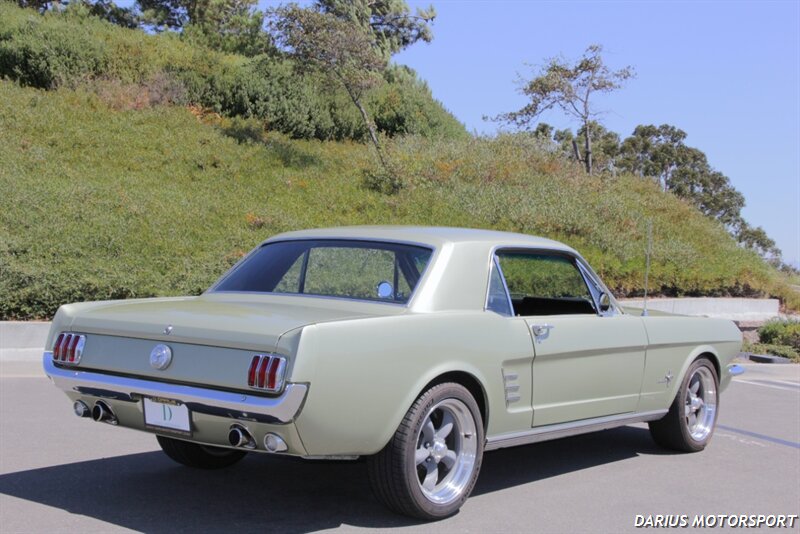

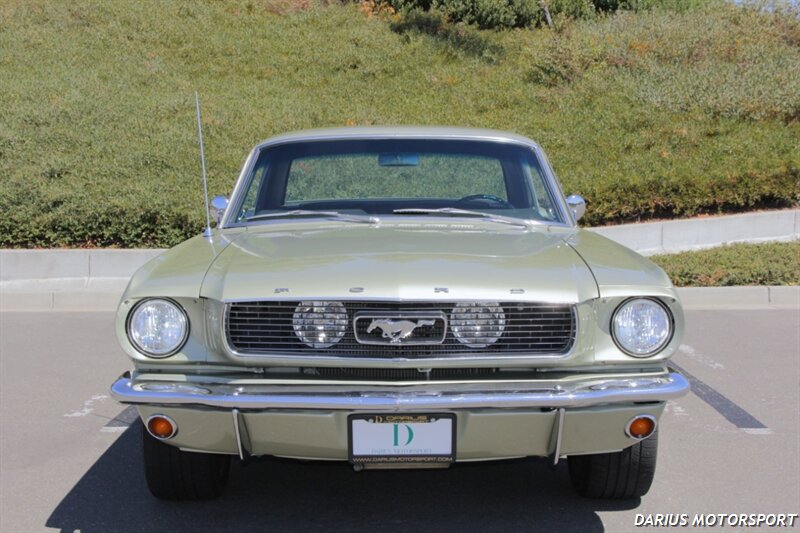

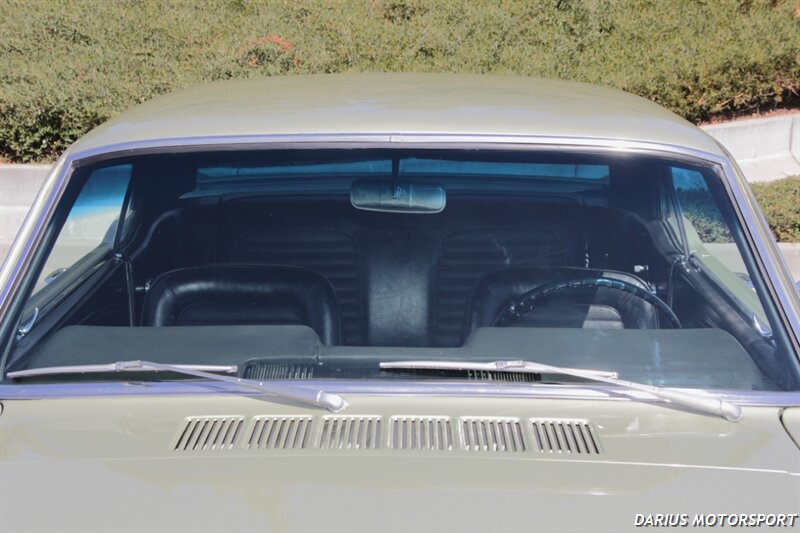

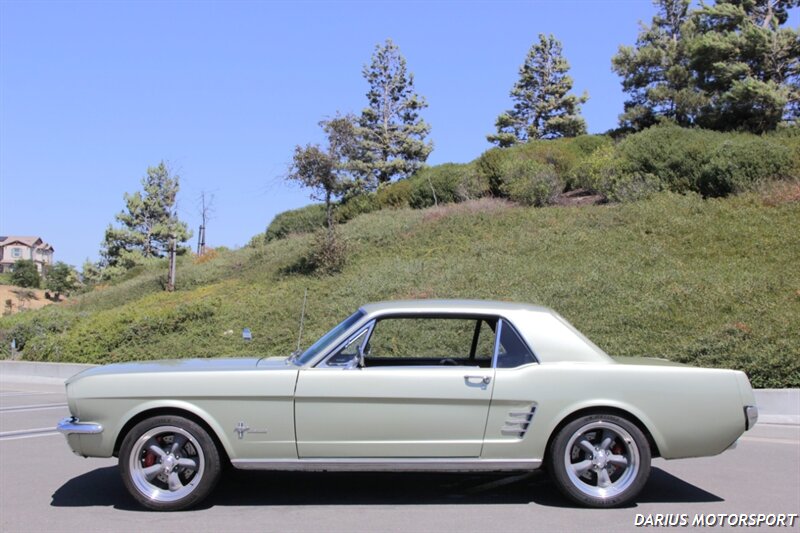

1966 Ford Mustang 2-Door Coupe

Exterior Color: SAUTERNE GOLD

Interior Color: BLACK

Stock Number: FOR733

Mileage: Exempt - 11,000

Engine: 302

Fuel: Gasoline

Transmission: 5 Speed Manual

Title: Clear

VIN: 6R07T164733

Internet Price: $46,500

Vehicle Features & Options

Ask the Seller a Question

Email this to a Friend

Start Credit Application

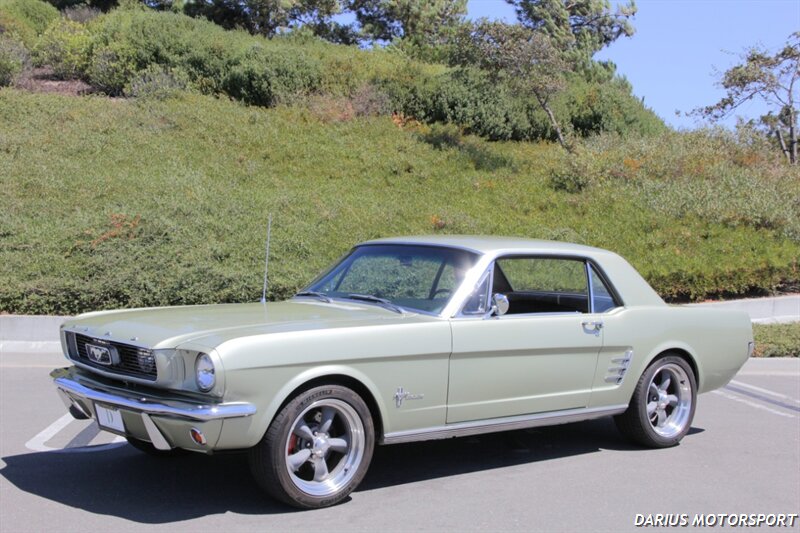

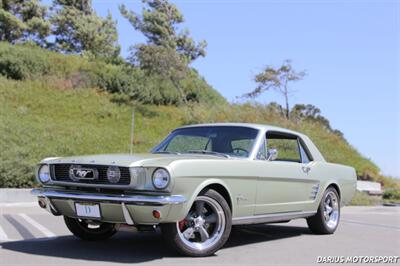

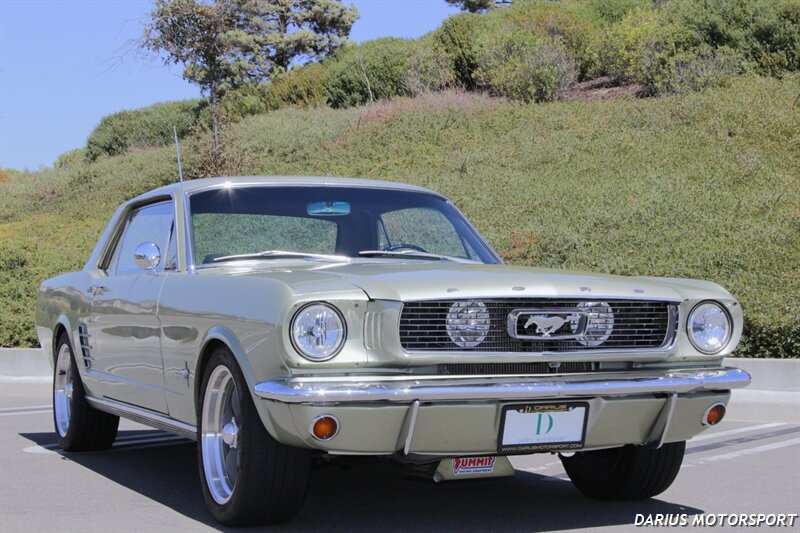

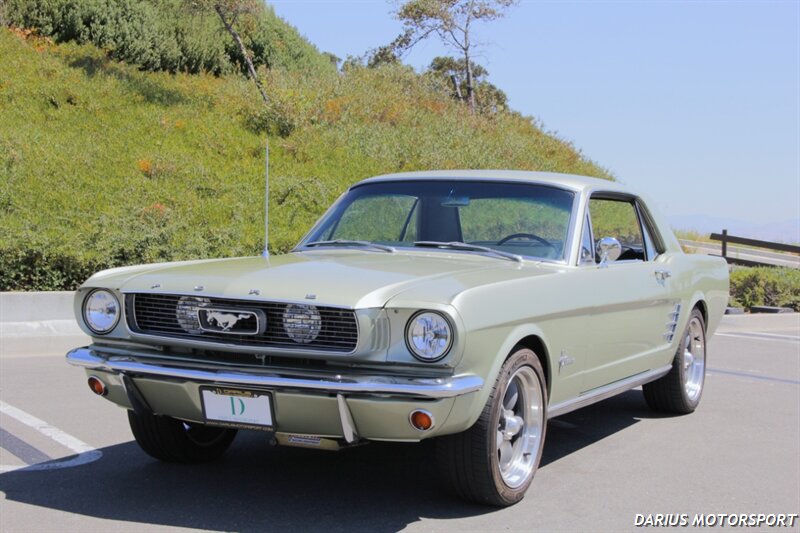

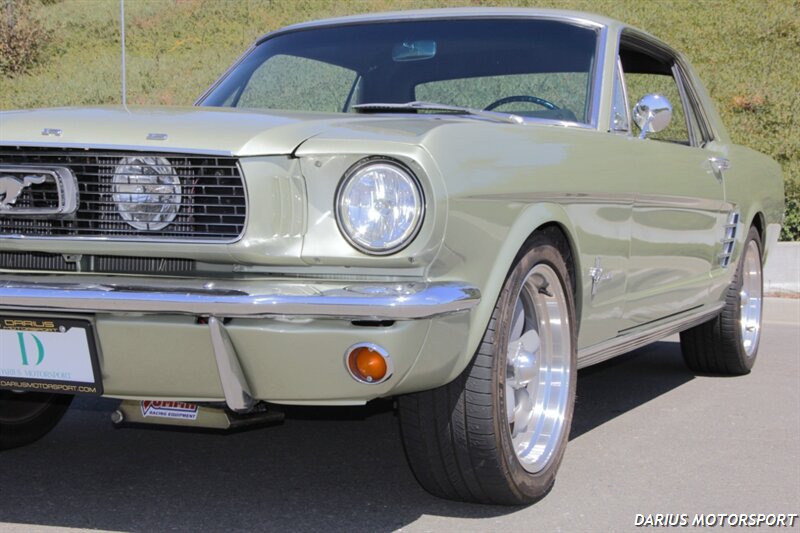

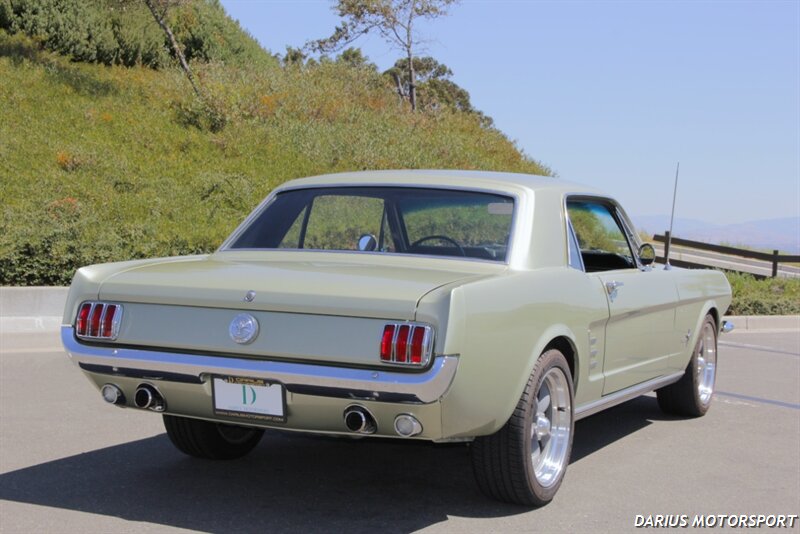

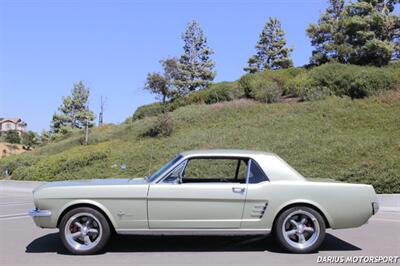

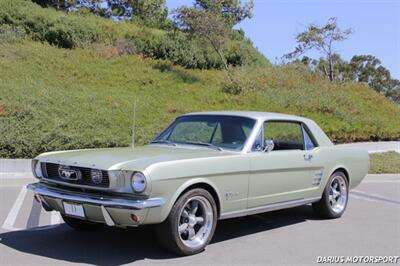

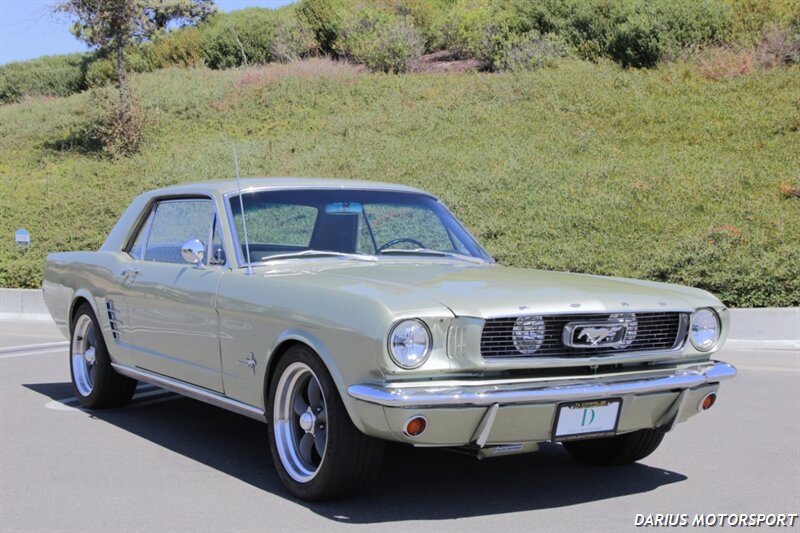

1966 Ford Mustang *********ONE OF A KIND********* - Photo 1 - San Ramon, CA 94583

Vehicle Description

The 1966 Ford Mustang is a legendary American classic, and a crucial year for the first-generation Mustang. The 1966 Ford Mustang's blend of classic style, engaging performance, and customizable options solidified its place as a beloved American icon.

1966 MUSTUNG DESCRIPTION/MODIFICATION/SPECIFICATIONS:

6,752 MILES ON THE DRIVE-TRAIN--103,607 ON THE CHASSIS ( ORIGINAL MILES )
ALL INVOICES, RECEIPTS AND DOCUMENTS ARE AVAILABLE AND DOCUMENTED.

------------------------------

RESTOMOD BUILD - 306ci V8 ENGINE PUSHING 415HP
PAIRED TO A TREMEC T5z FIVE-SPEED MANUAL TRANSMISSION
BUILT 8" TRUETRAC FORD REAR END
FOUR-WHEEL POWER WILWOOD DISC BRAKES
RIDETECH
QA1 AND GLOBAL WEST UPGRADED FRONT AND REAR SUSPENSION

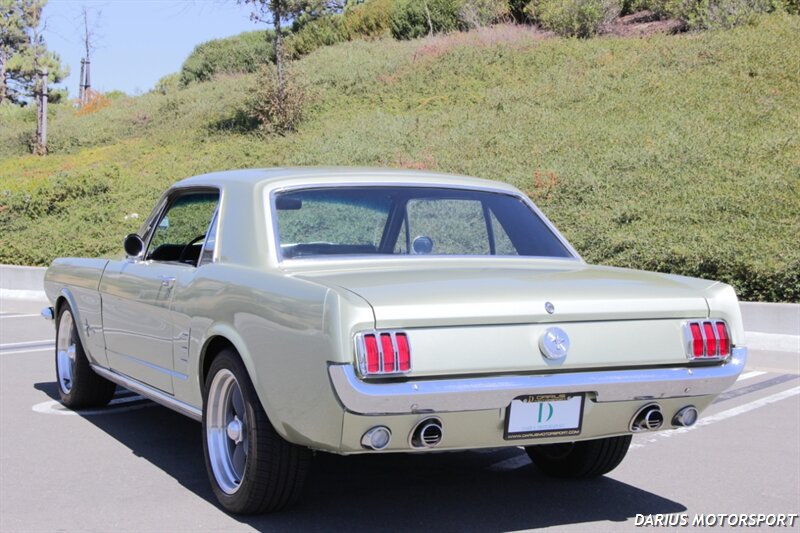

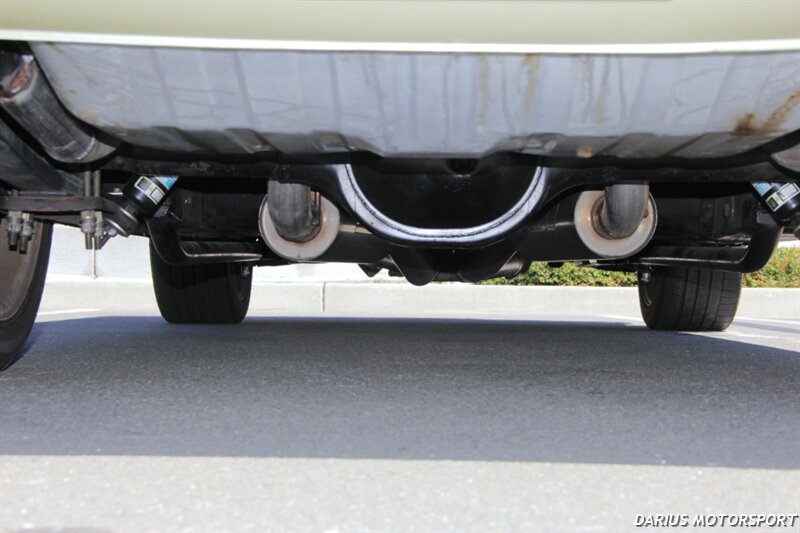

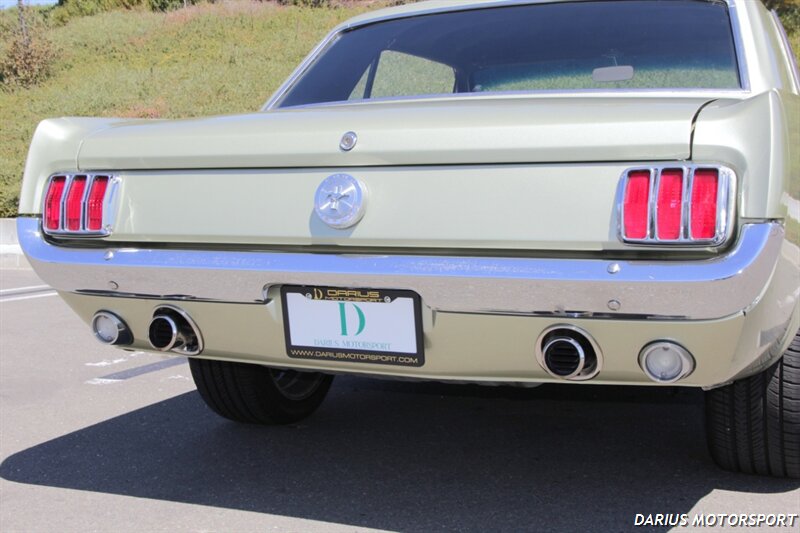

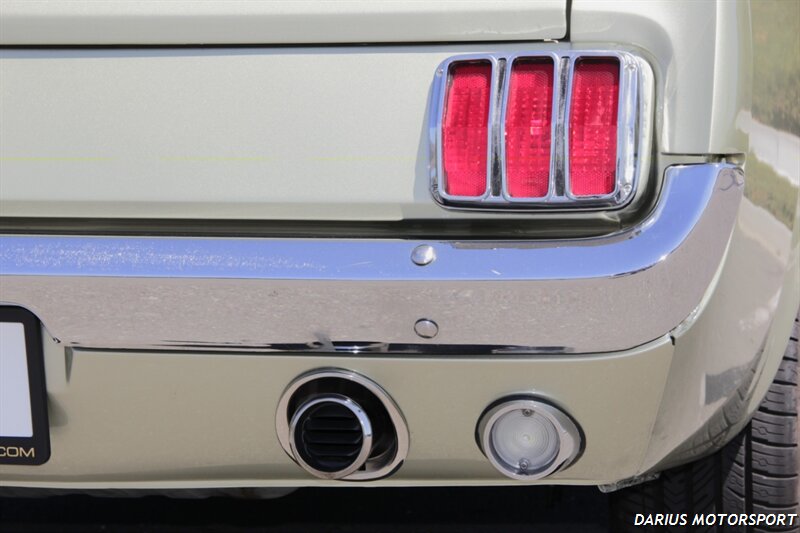

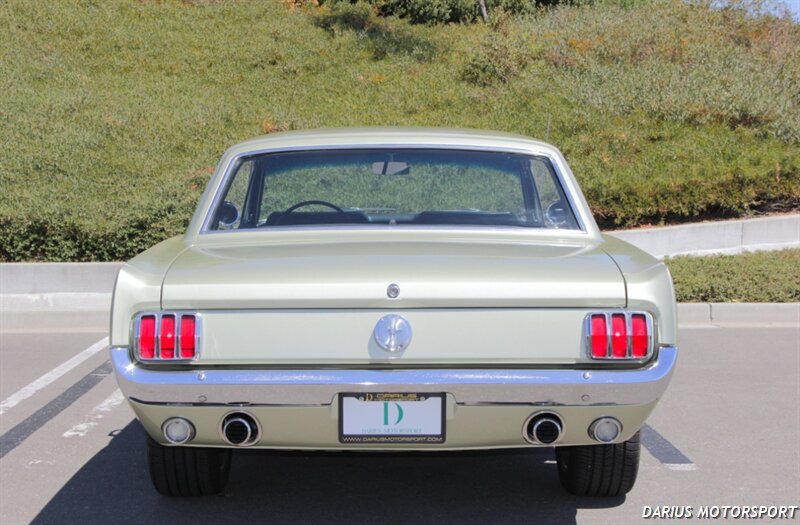

BORLA EXHAUST SYSTEM
BOREGSON POWER-STEERING WITH ROLLERIZED SHELBY GT350R QUICK RATIO STEERING ARMS

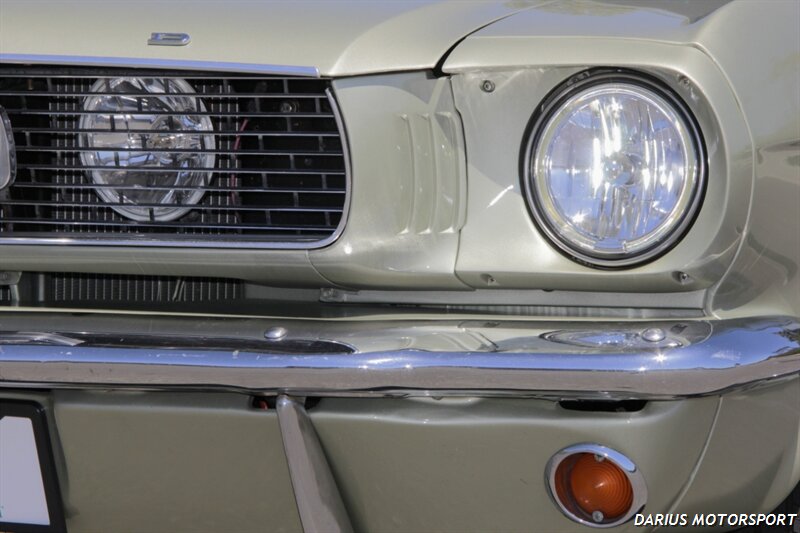

L.E.D LIGHTING

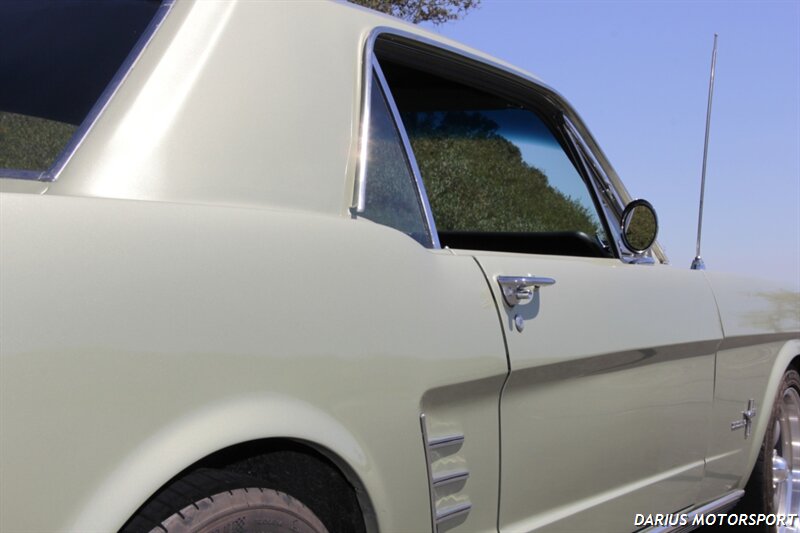

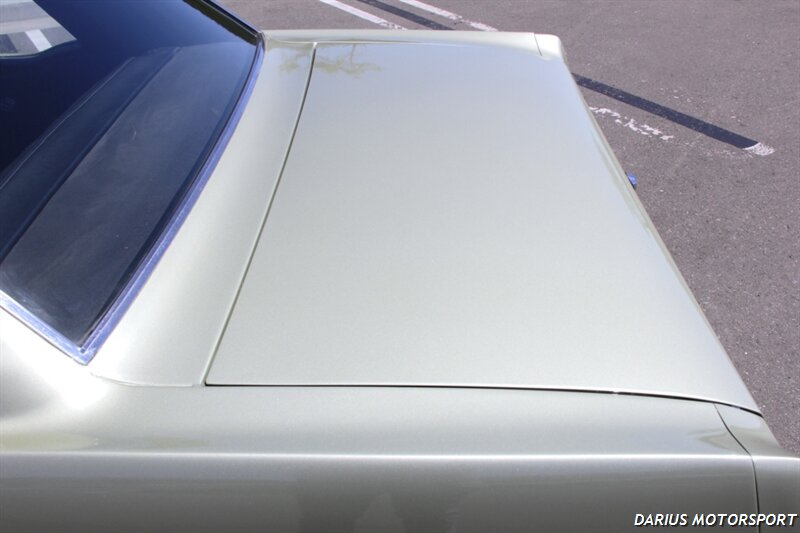

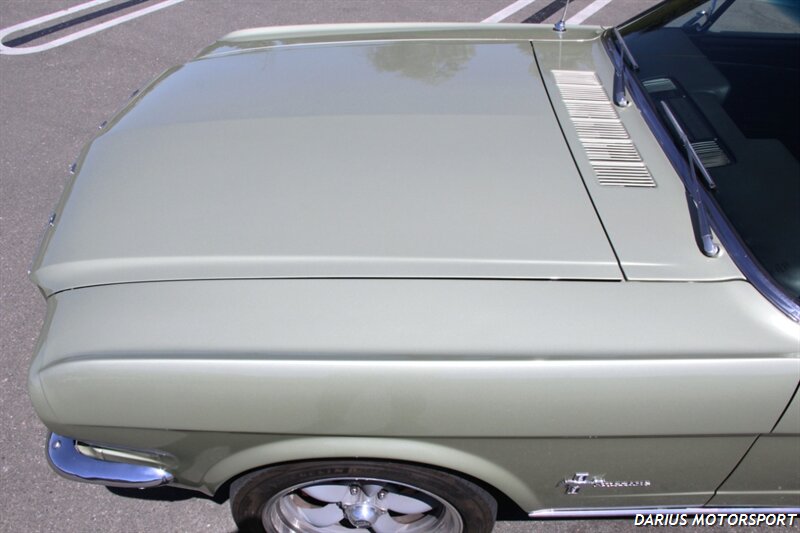

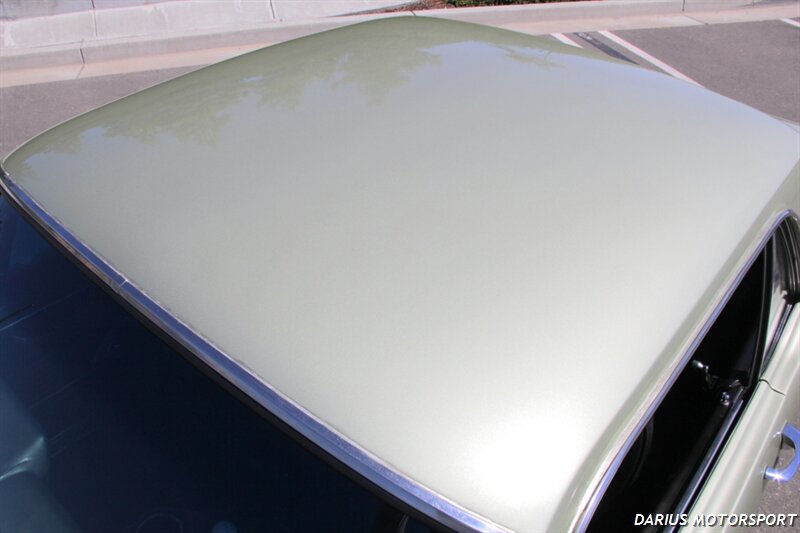

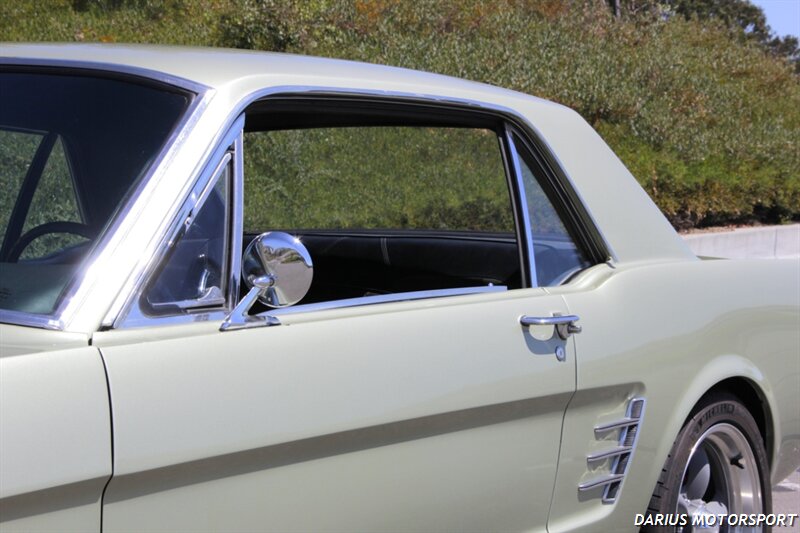

PAINT AND BODY RESTORATION WITH STAGE 2 BASE/CLEAR COAT AND VINTAGE STYLE AMERICAN RACING 17X8" TORQUE THRUST WHEELS

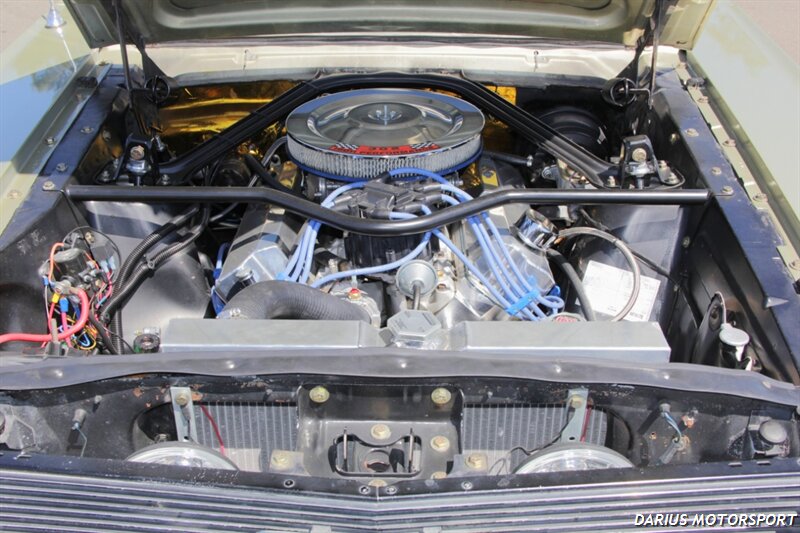

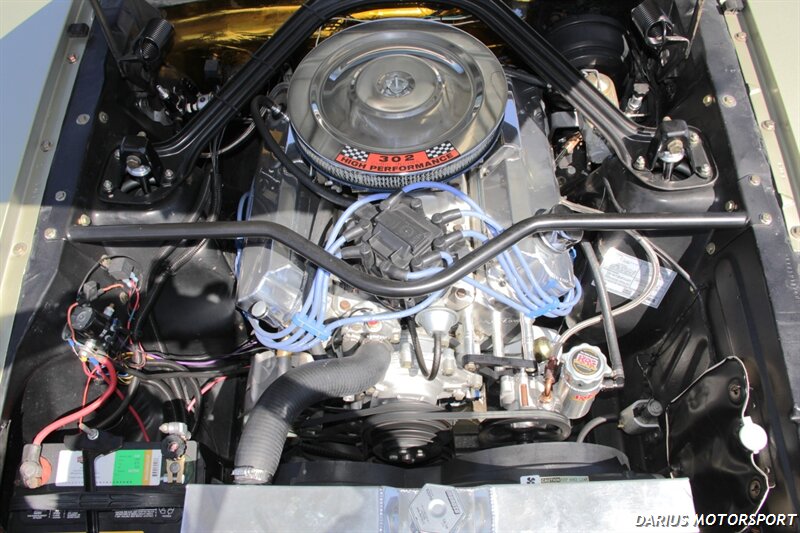

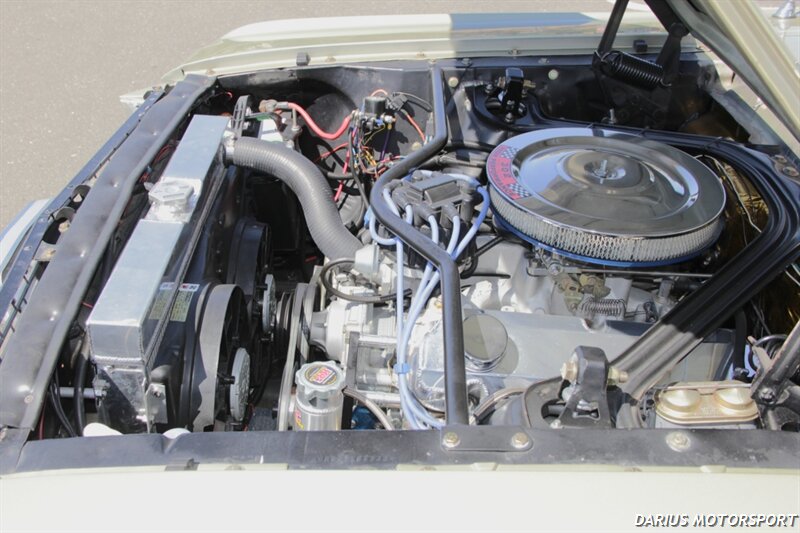

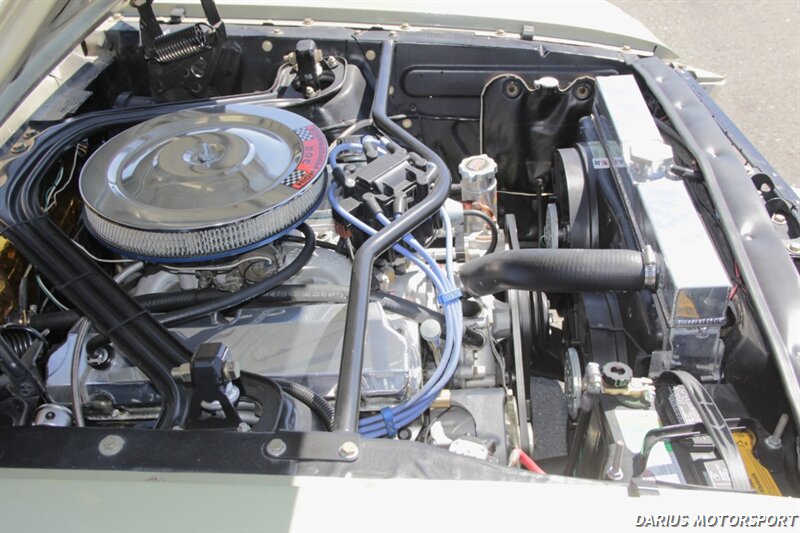

POWERTRAIN: 306CI ENGINE

1974 FORD 302 SHORTBLOCK
2-BOLT MAIN
0.03" OVERSIZED BORE
SILVOLITE HYPEREUTECTIC PISTONS. 4.030" OVERBORE, 0.927" PIN DIAMETER
FACTORY CRANKSHAFT AND CONNECTING RODS
FEL PRO 2-PIECE REAR MAIN SEAL
MELLING M-68HV HIGH VOLUME OIL PUMP

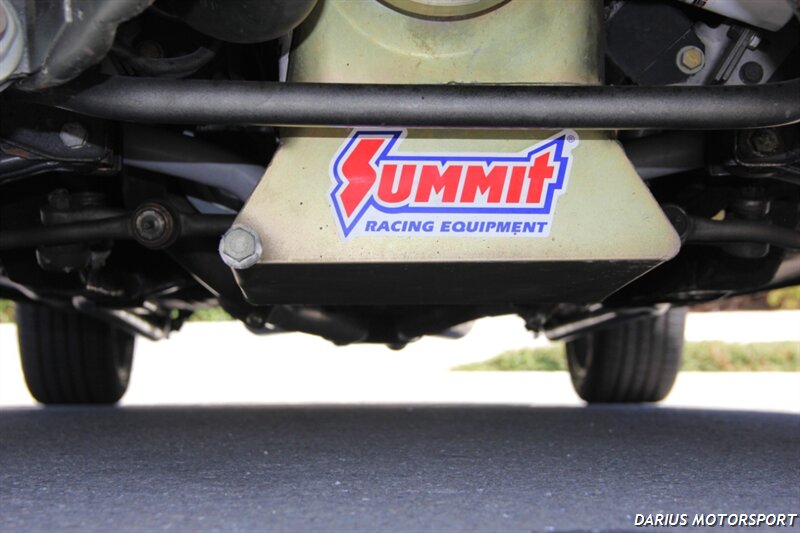

7QUART DEEP SUMP OIL PAN
CLOYES TRUE DOUBLE ROLLER TIMING SET
COMP CAMS XE274HR HYDRAULIC ROLLER STREET/STRIP PERFORMANCE CAMSHAFT
MOREL #5327 LIMITED TRAVEL RACE HYDRAULIC ROLLER TIE-BAR LIFTERS
TRICKFLOW TFS 11R 190cc CNC PORTED ALUMINUM CYLINDER HEADS
INTAKE VALVES: 2.055 OD
EXHAUST VALVES: 1.600 OD
190cc WITH 56cc COMBUSTION CHAMBER
COMETIC C5511-027 MLS HEAD GASKET 0.027" COMPRESSED THICKNESS
TRICKFLOW CHROMOLY PUSHRODS
ARP ARM STUDS AND CYLINDER HEAD BOLTS
COMP CAMS ULTRA PRO MAGNUM CHROMOLY ROLLER ROCKER ARMS. RATIO 1:60
EDELBROCK RPM AIR GAP FUAL PLANE ALUMINUM INTAKE MANIFOLD

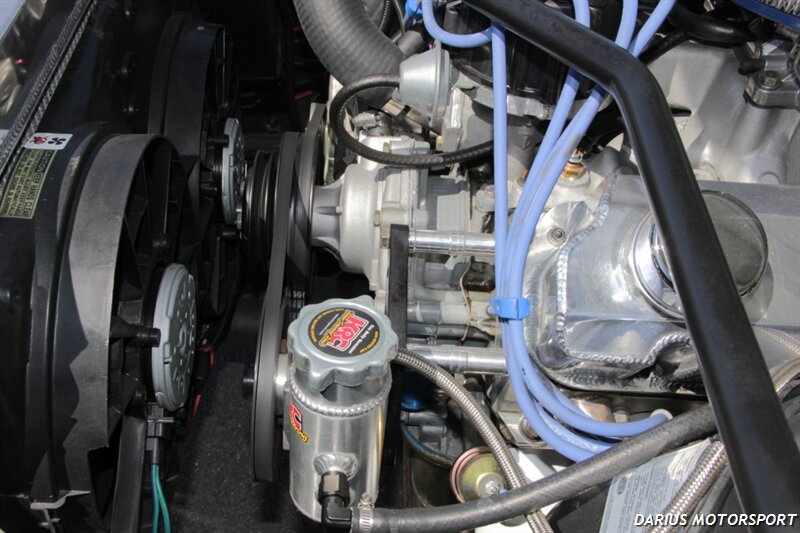

FLOWKOOLER ALUMINUM HIGH VOLUME MECHANICAL WATERPUMP
FORD MOTORCRAFT 192 DEGREE THERMOSTAT

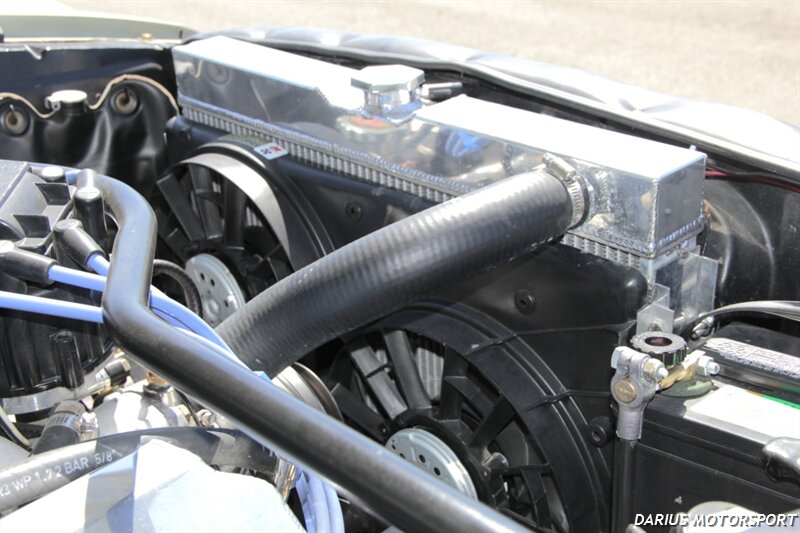

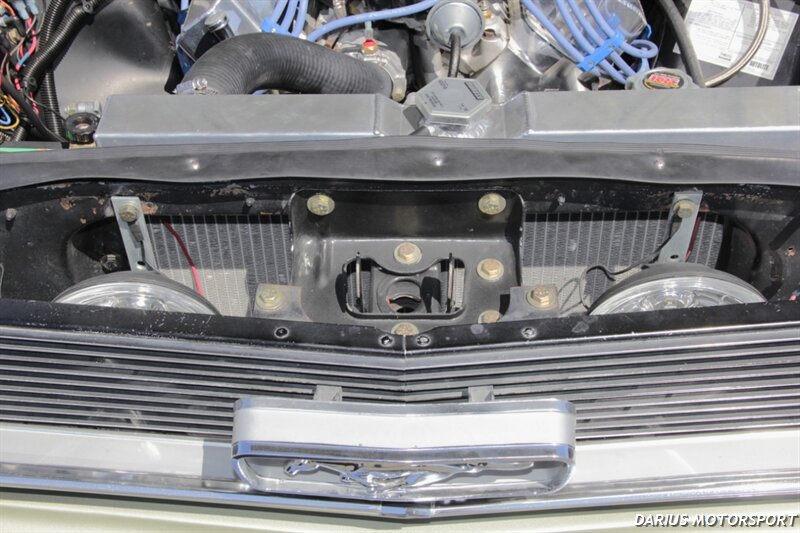

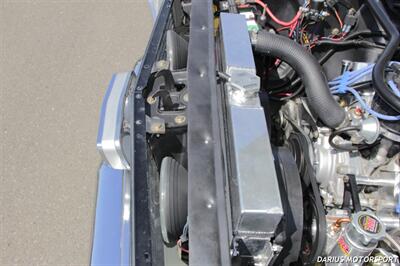

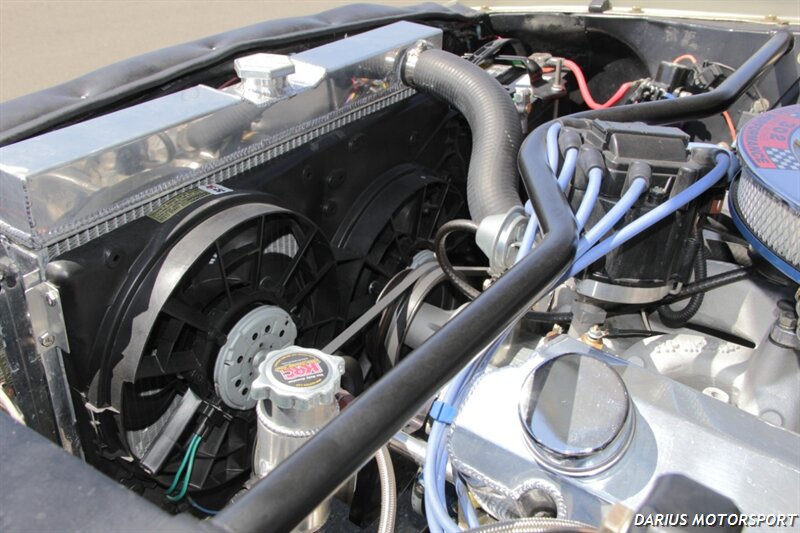

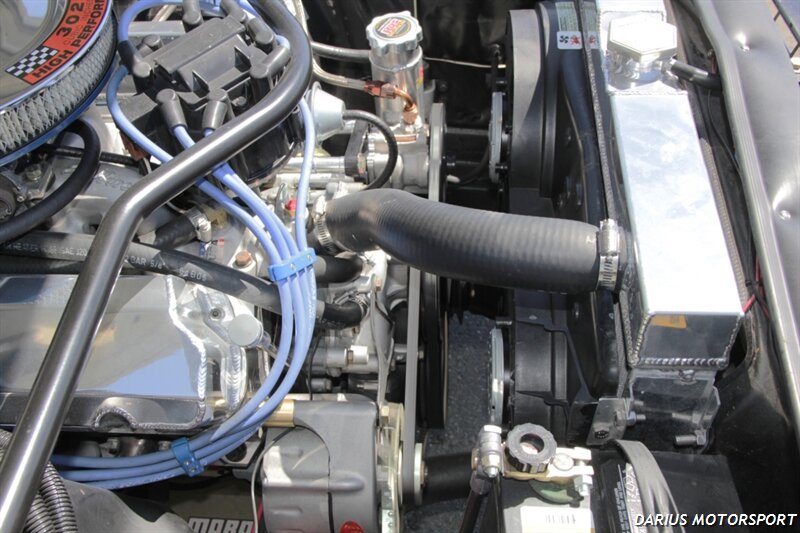

CHAMPION COOLING 24in ALUMINUM 3-ROW RADIATOR WITH FORD CONTOUR DUAL ELECTRIC FANS
FABRICATED TIG WELDED POLISHED ALUMINUM TALL VALVE COVERS
PERFORMANCE DISTRIBUTORS HEI DISTRIBUTER
FIRING ORDER MATCHES FORD 302 HIGH OUTPUT: 1-3-7-2-6-5-4-8
POWERMASTER 100 AMP 1 WIRE ALTERNATOR
FORD PMGR MINI STARTER

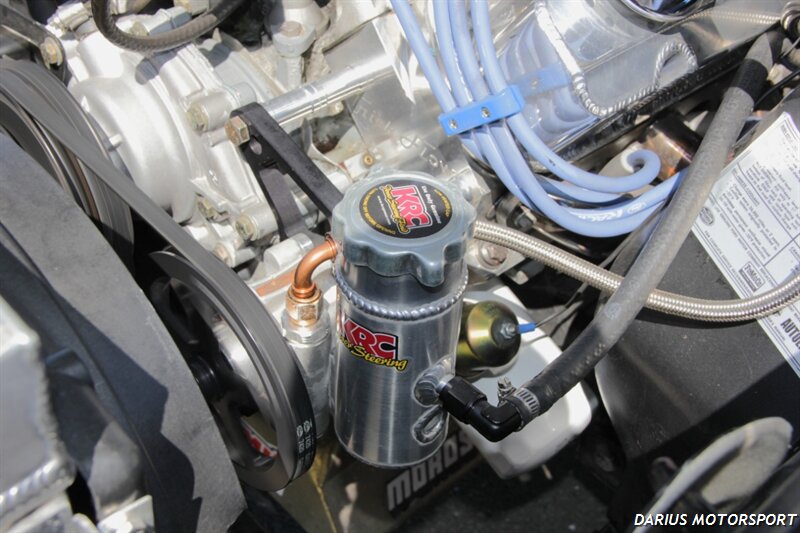

KRC PERFORMANCE HIGH-VOLUME POWER STEERING PUMP

DRIVETRAIN:

T5z TREMEC 5-SPEED MANUAL TRANSMISSION 10-SPLINE INPUT SHAFT AND 28-SPLINE OUTPUT SHAFT
2.95 1ST GEAR RATIO, 1.94 2ND GEAR, 1.34 3RD GEAR, 1.0 4TH GEAR, 0.63 5TH GEAR
MCLEOD THROWOUT BEARING
MCLEOD 10" STREET PRO CLUTCH DISC AND PRESSURE PLATE

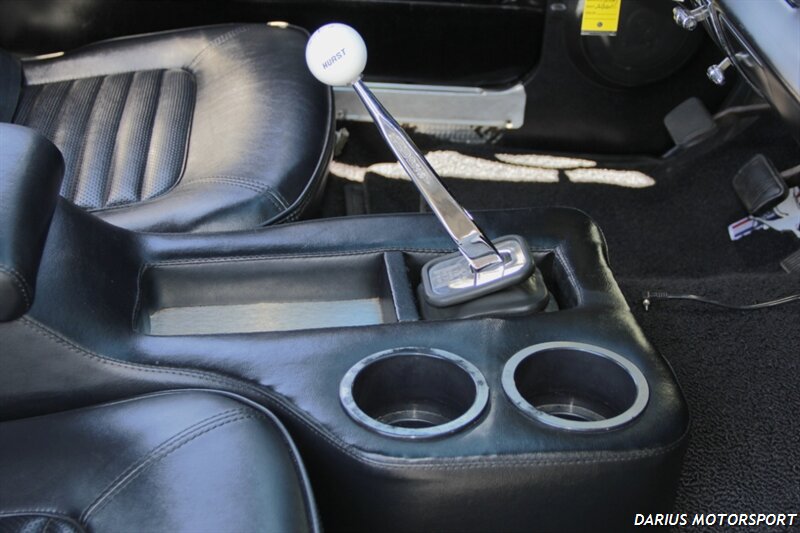

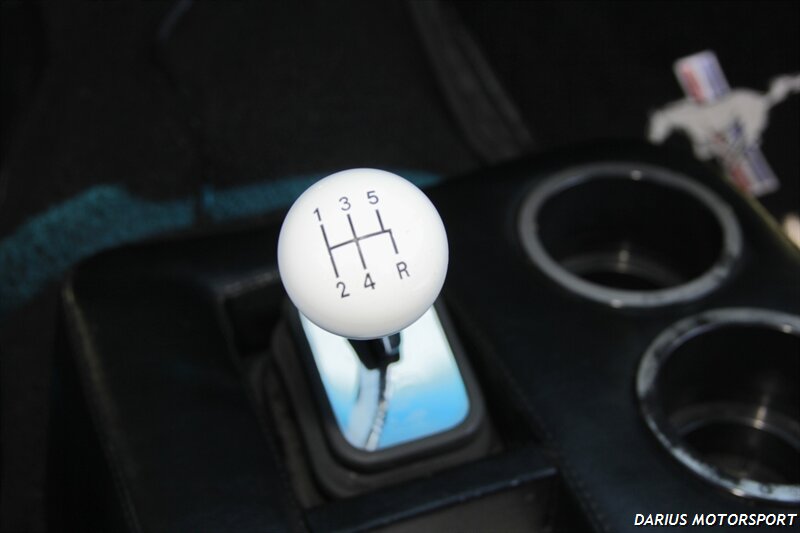

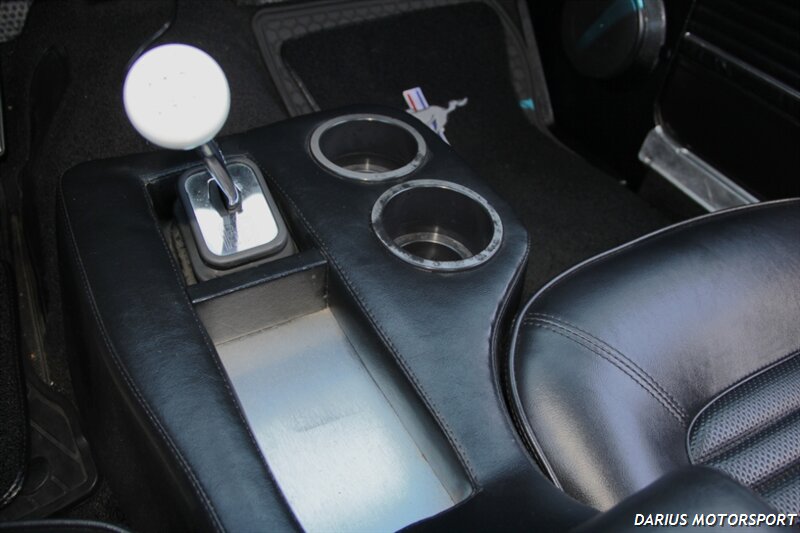

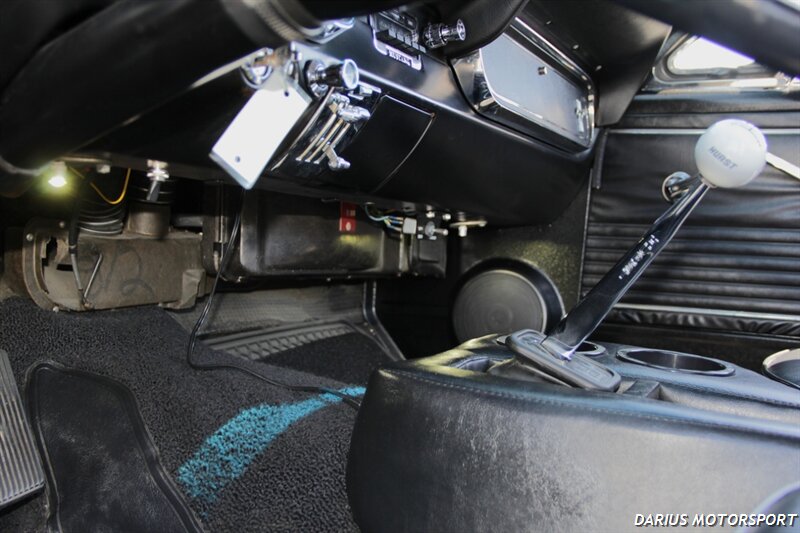

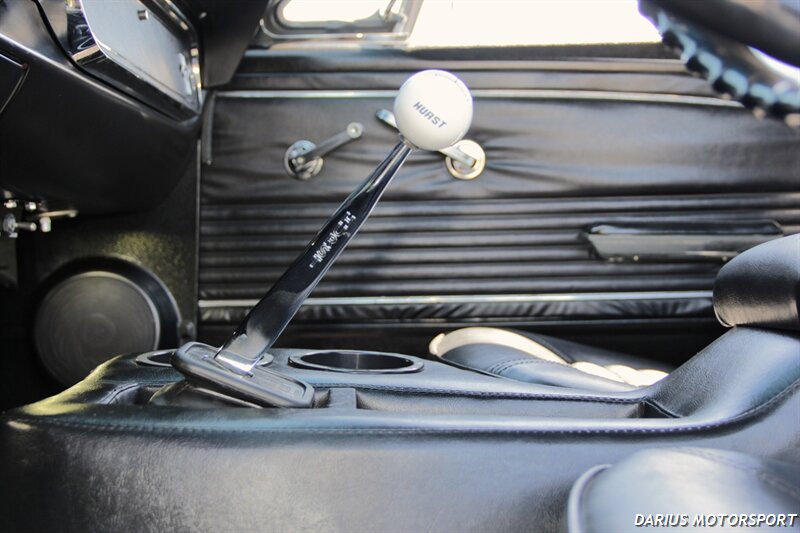

HURST SHIFTER W/WHITE SHIFT KNOB

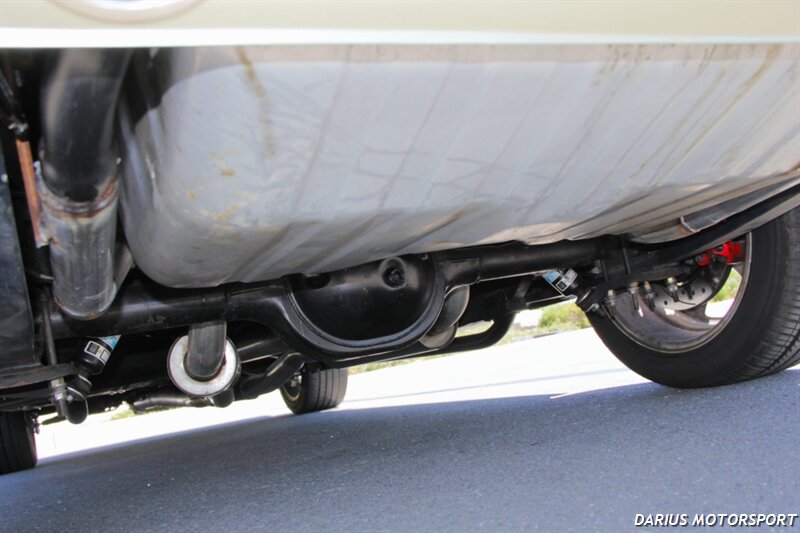

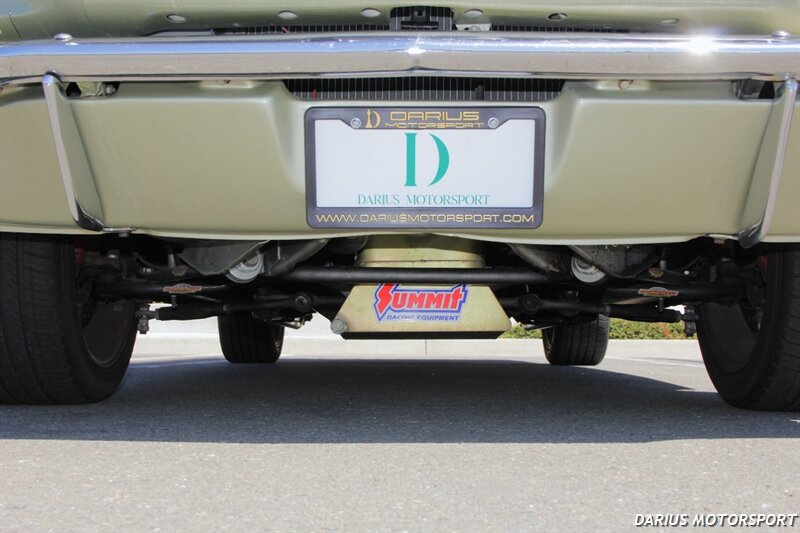

8" FORD REAR-END.
3.5 INCH CUSTOM ALUMINUM DRIVESHAFT WITH SONAX BILLET STEEL SLIP-YOKE FROM SOUTH BAY DRIVELINE
TRUETRAC LIMITED SLIP DIFFERENTIAL
BUILT THIRD MEMBER, 28-SPLINE AXLE SHAFTS WITH 3.55 RATIO GEARS

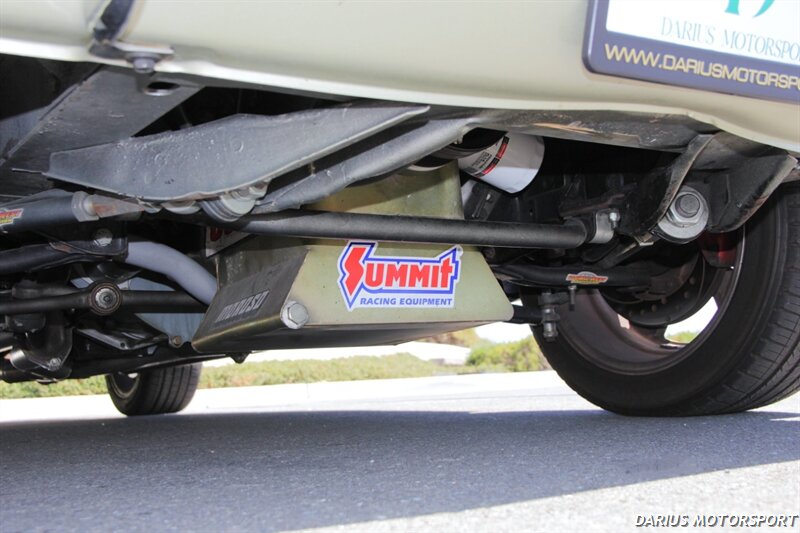

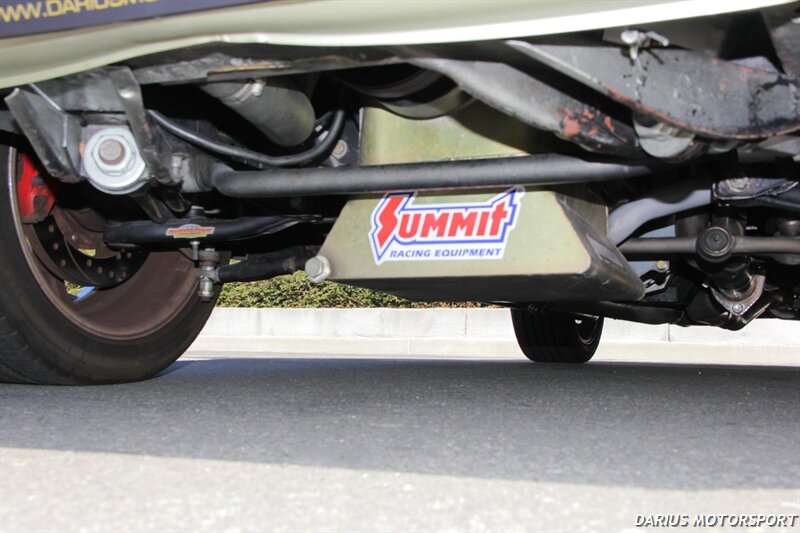

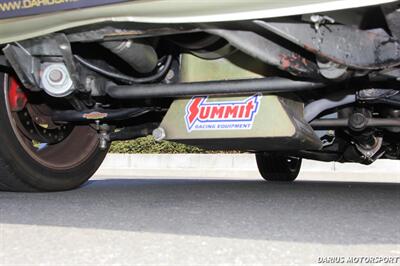

SUSPENSION:

1 1/8 INCH SCOTT DRAKE UPGRADED FRONT SWAY-BAR
SCOTT DRAKE MANUAL STEERING CENTERLINK
FORD OEM V8 FRONT 5 LUG SPINDLES
WILWOOD DISC ( 6 PISTON FRONT, 4 PISTON REAR )
4-WHEEL DISC BRAKES, 12.2" ROTORS-REAR, 12.2" ROTOR-FRONT
WILWOOD BRAKE PROPORTIONING VALVE PLUMBED TO ADJUST REAR BRAKES SENSITIVITY
WILWOOD REAR PARKING BRAKES WITH WILWOOD PARKING BRAKE CABLES
BOREGESON 14:1 POWER STEERING BOX WITH 6 AN PTFE BRAIDED STEEL POWER STEERING LINES
SHELBY GT350R ROLLERIZED QUICK STEER KIT ( PITMAN AND IDLER ARMS )
1in SHELBY/ARNING DROP
GLOBAL WEST TUBULAR UPPER CONTROL ARMS
GLOBAL WEST TUBULAR LOWER CONTROL ARMS
GLOBAL WEST ADJUSTABLE COILOVERS ( LOWERED 1.5in )
BAER BRAKES BUMPSTEER KIT
MOOG INNER TIEROD ENDS ( DRIVER AND PASSENGER )

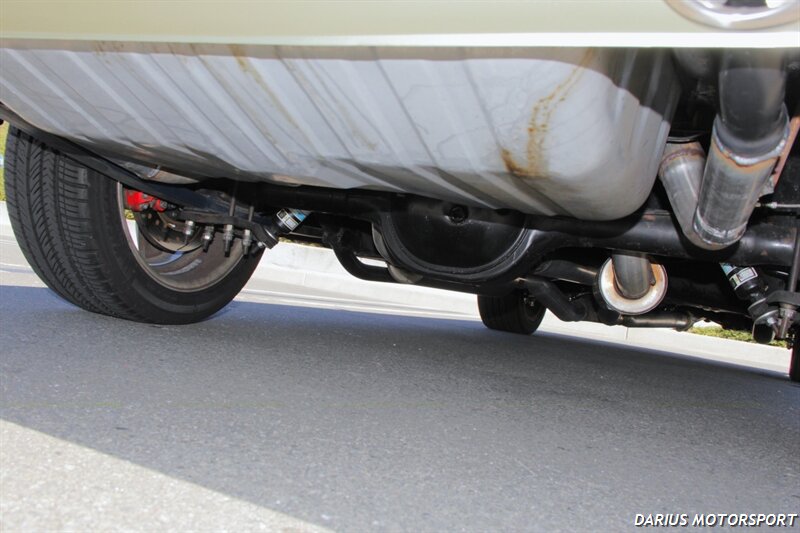

RCD CUSTOM VALVED BILSTEIN REAR SHOCKS
RIDETECH MONO LEAF COMPOSITE REAR LEAF SPRINGS WITH DERLIN BUSHINGS
1in LOWERING BLOCK

FUEL SYSTEM:

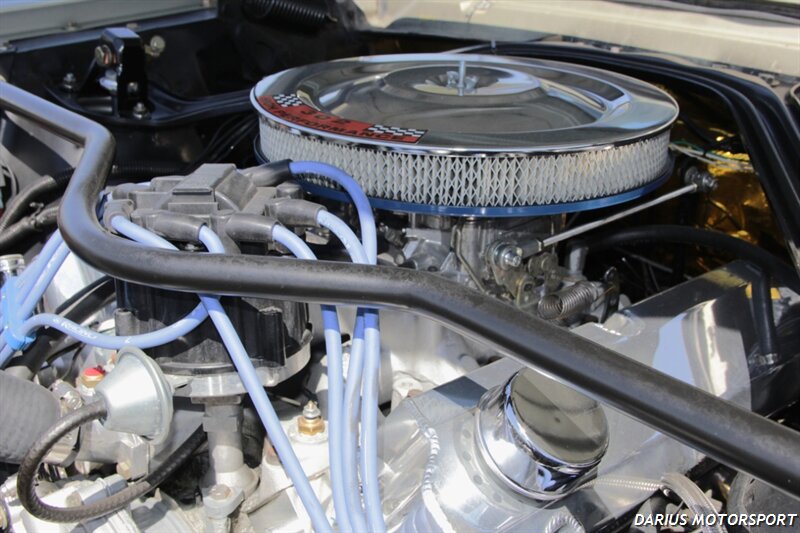

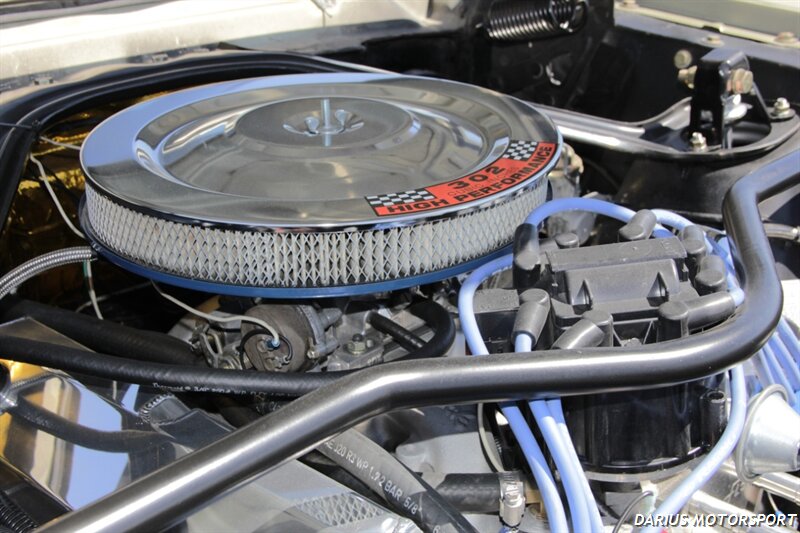

EDELBROCK 1406 600 cfm CARBURETOR
DEATSCHWERKS DW300 FUEL PUMP
6 AN PTFE BRAIDED STEEL ( PRESSURE AND RETURN LINES )
TANKS INC 22 GALLON EFI READY FUEL TANK

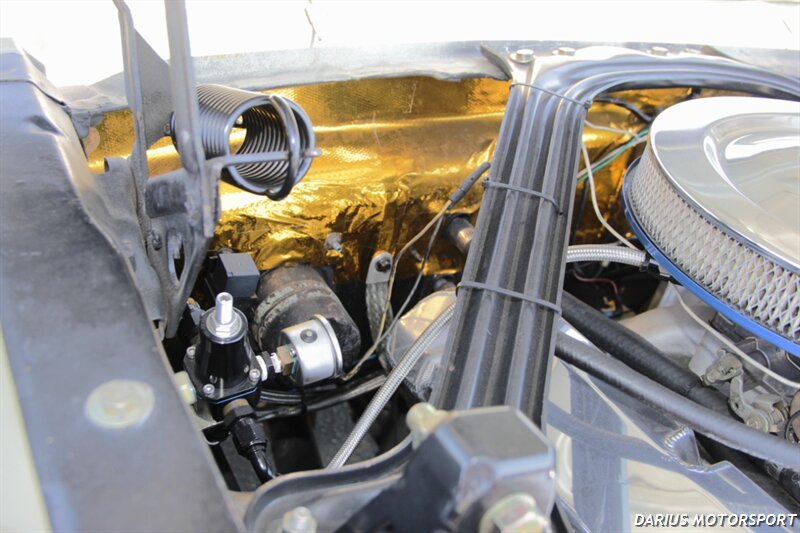

TRICKFLOW FUEL PRESSURE REGULATOR

WHEEL AND TIRES:

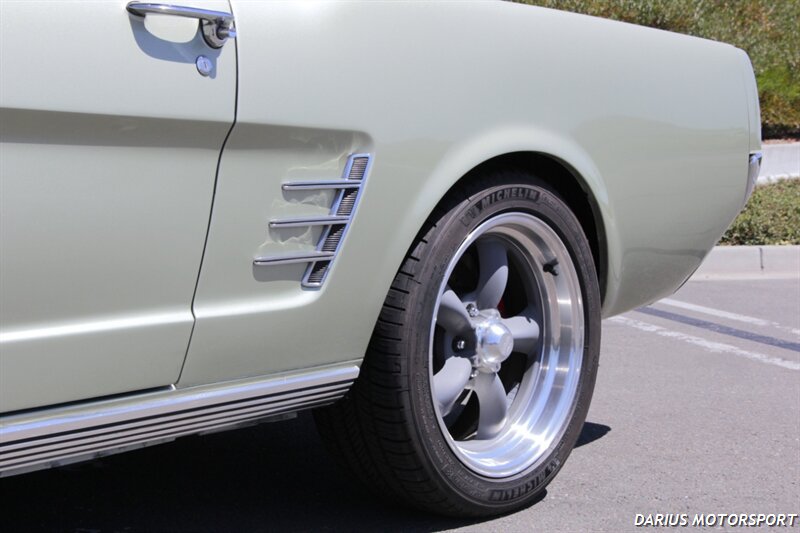

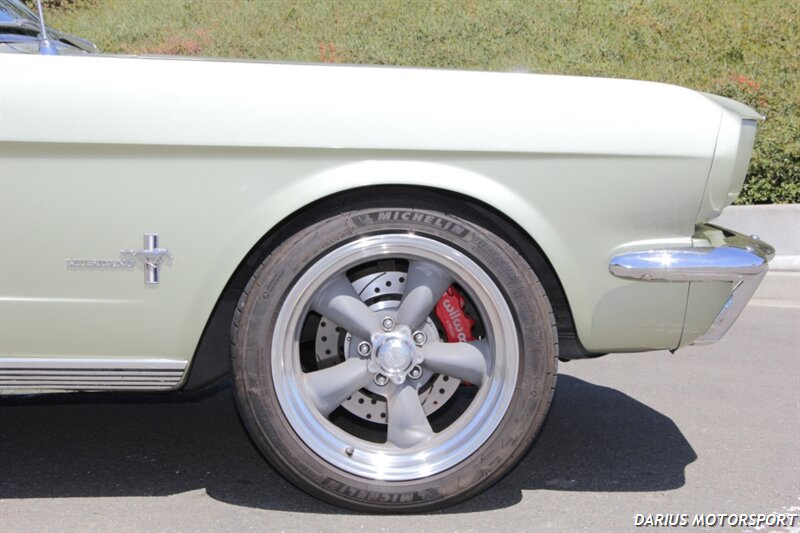

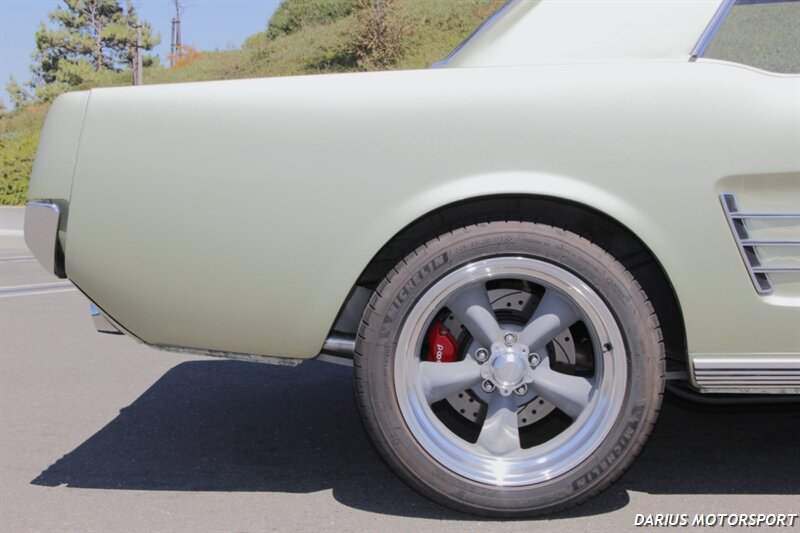

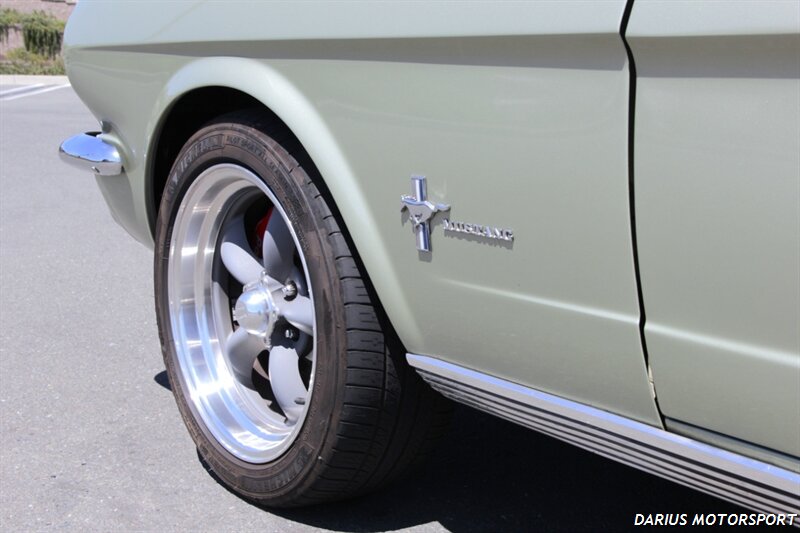

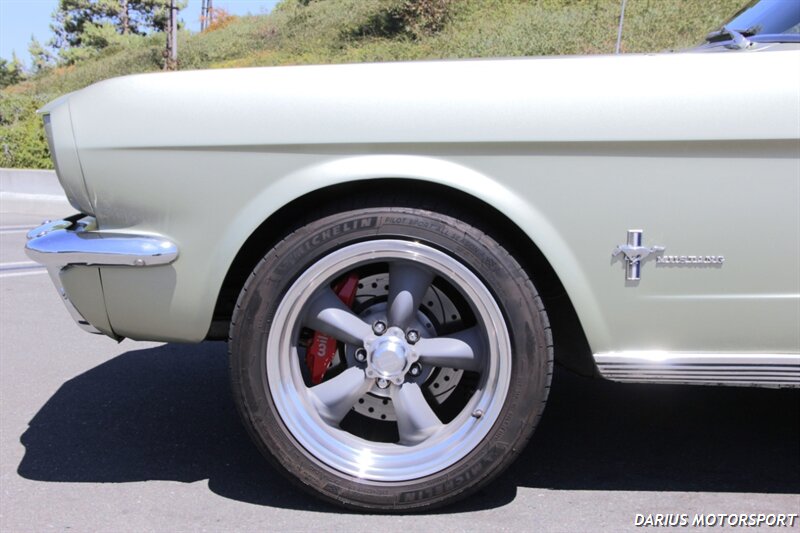

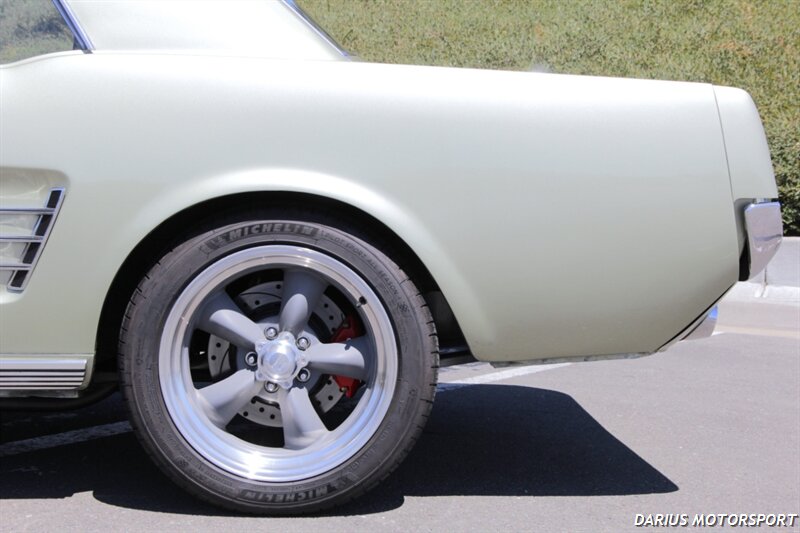

AMERICAN RACING TORQUE THRUST II 17X8in ALUMINUM WHEELS
MICHELIN PILOT SPORT AS4 TIRES
235/45 FRONT
235/45 REAR
** NO SPARE TIRE OR JACK INCLUDED **

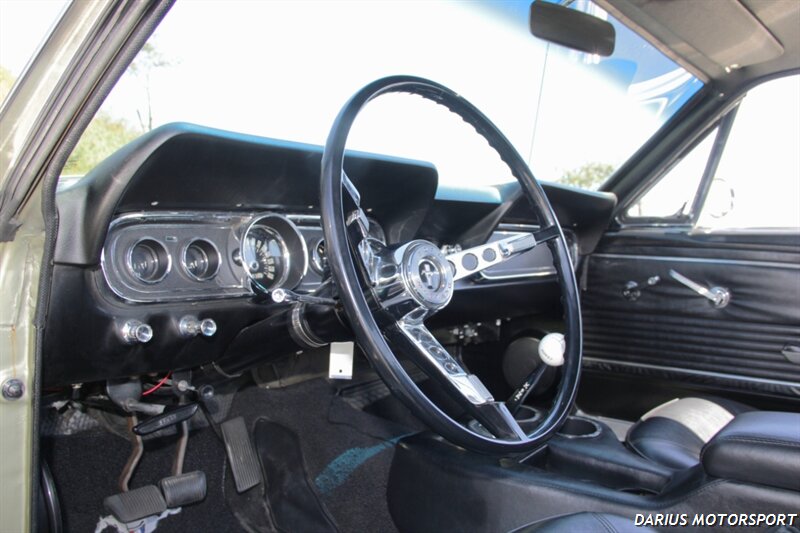

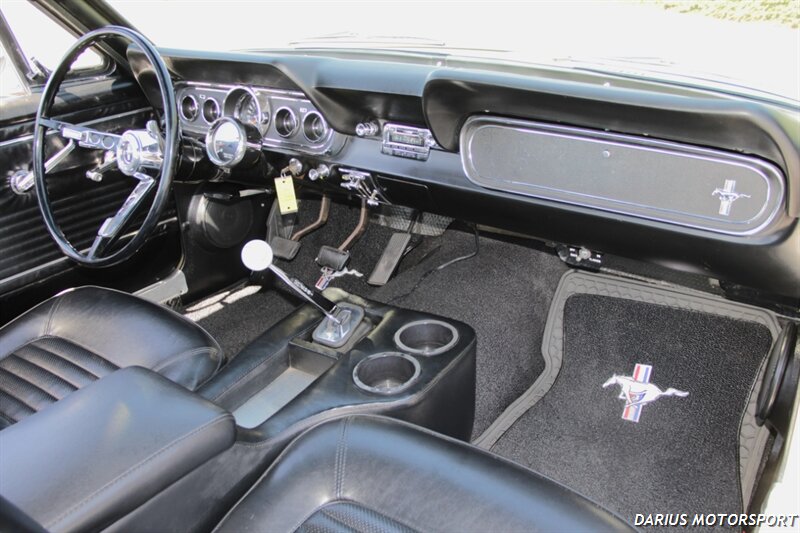

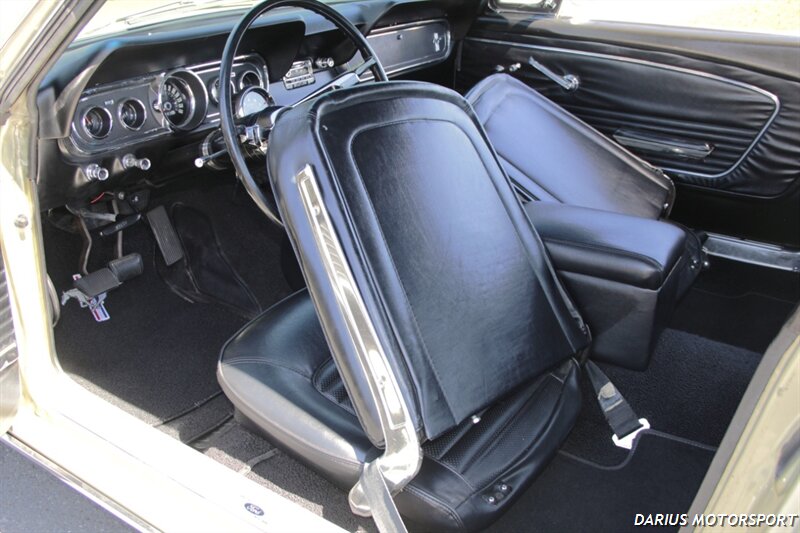

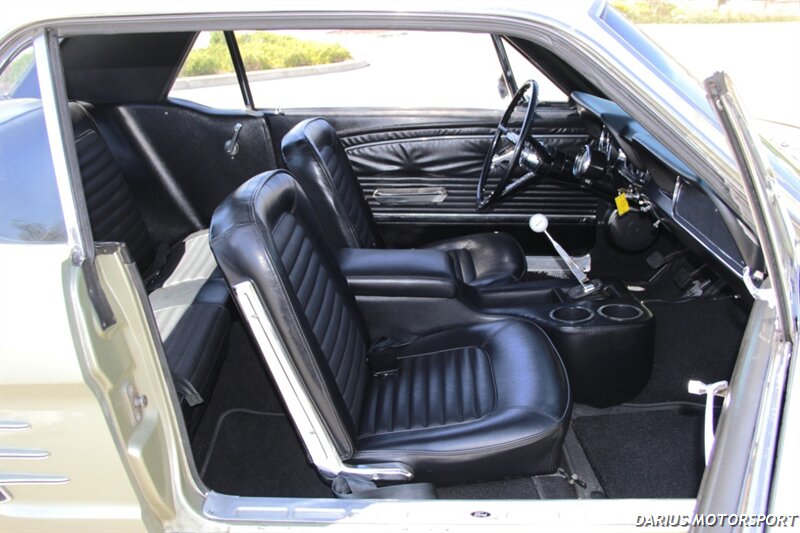

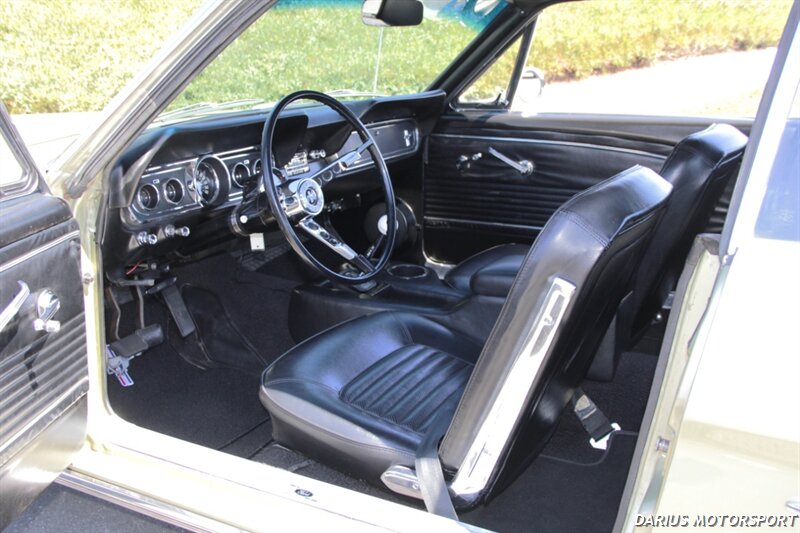

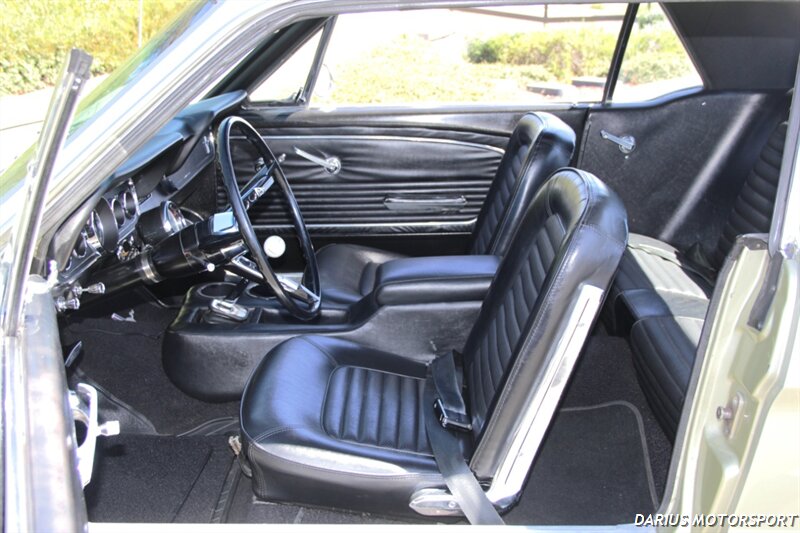

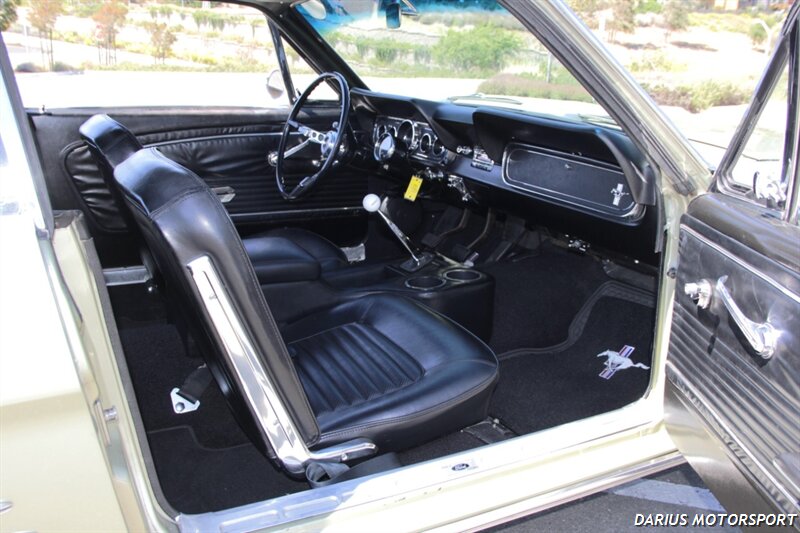

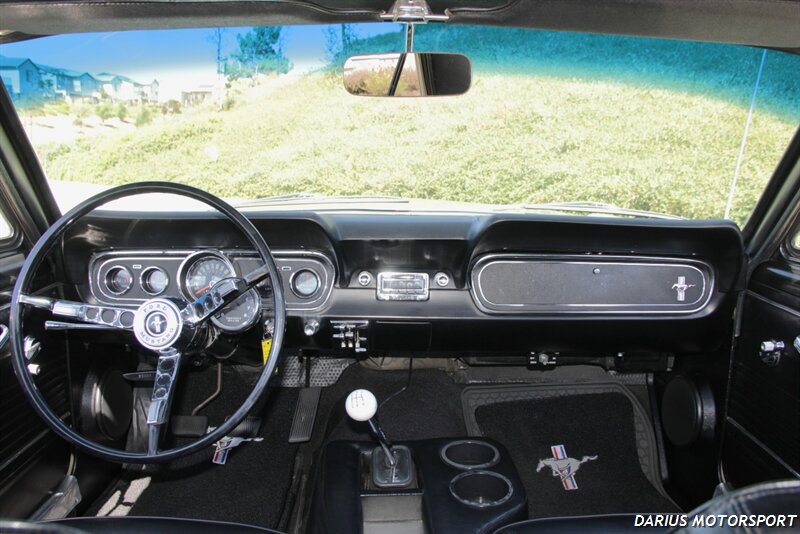

INTERIOR:

DYNAMAT SOUND DEADENING INSTULATION ON FLOOR PAN, TRANSMISSION TUNNEL, FIREWALL, AND DIFFERENTIAL HOUSING.

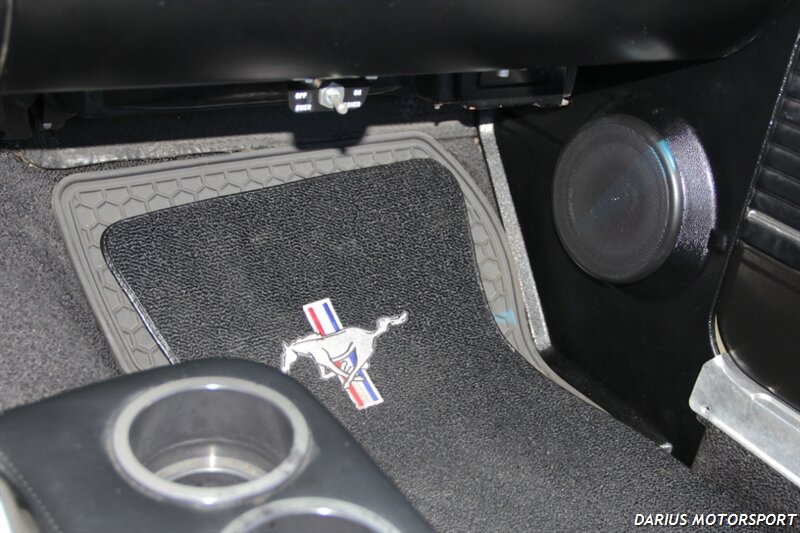

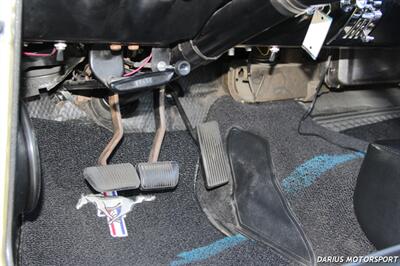

NEW OEM STYLE BLACK CARPET

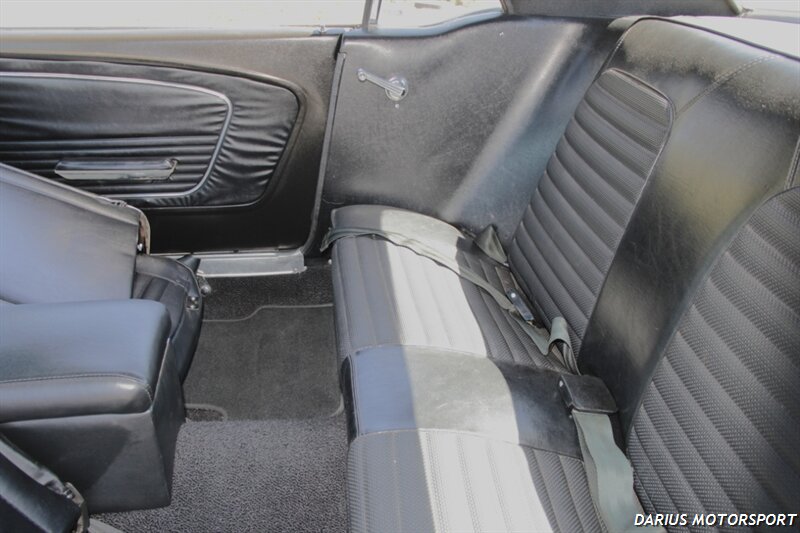

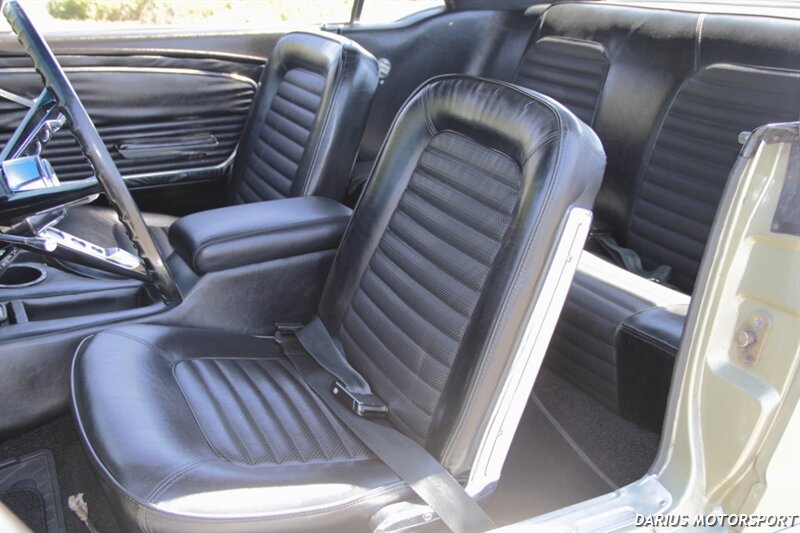

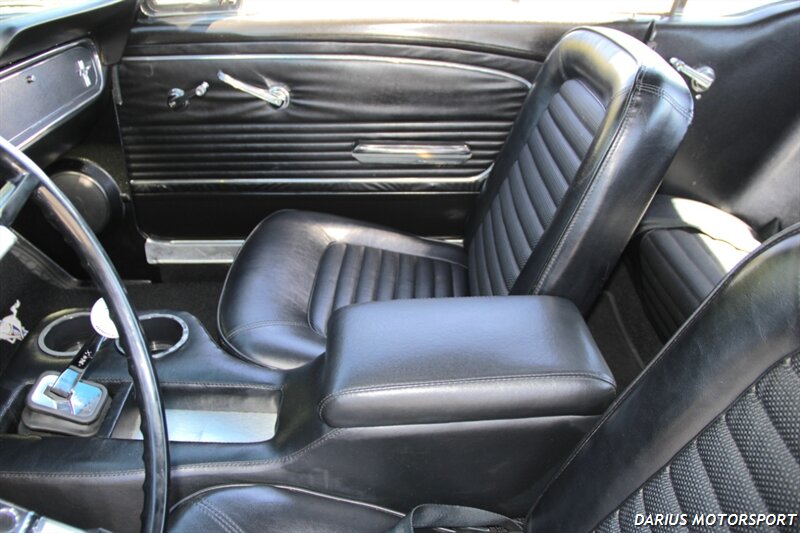

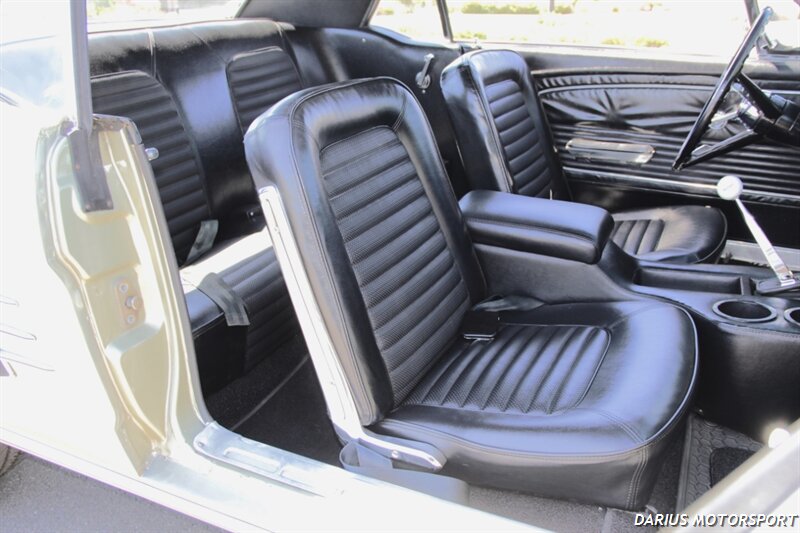

NEW FRONT SEAT UPHOLSTERY

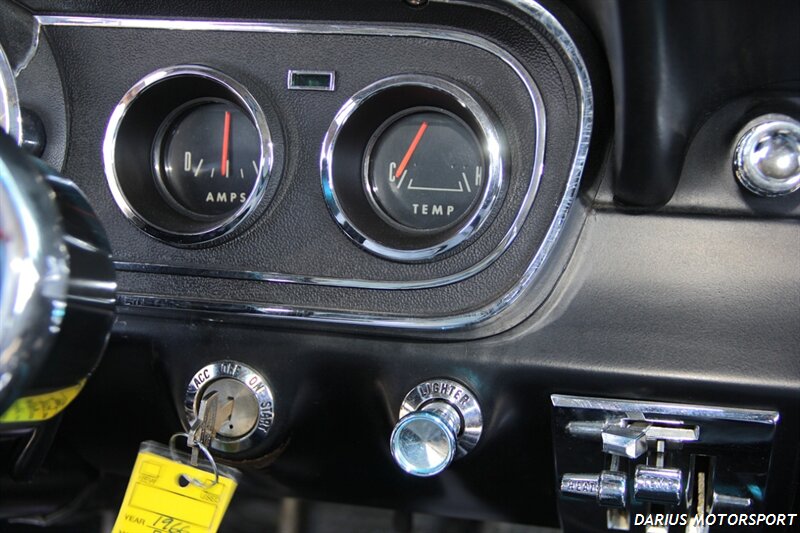

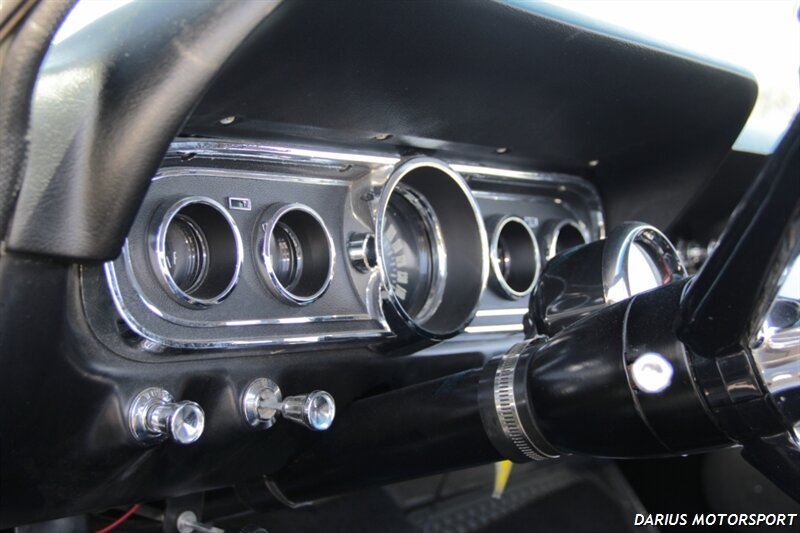

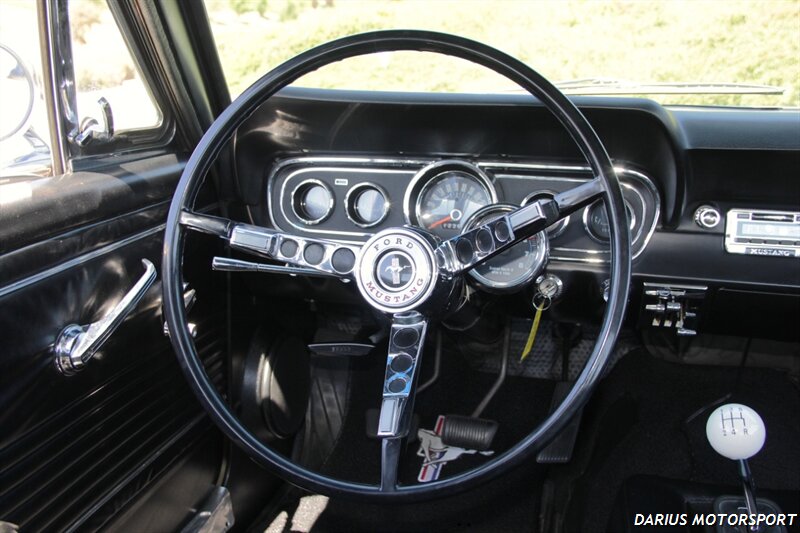

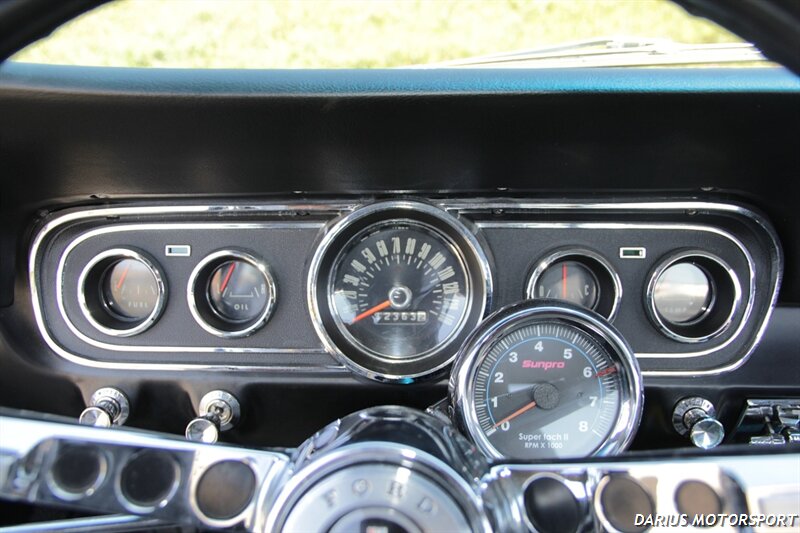

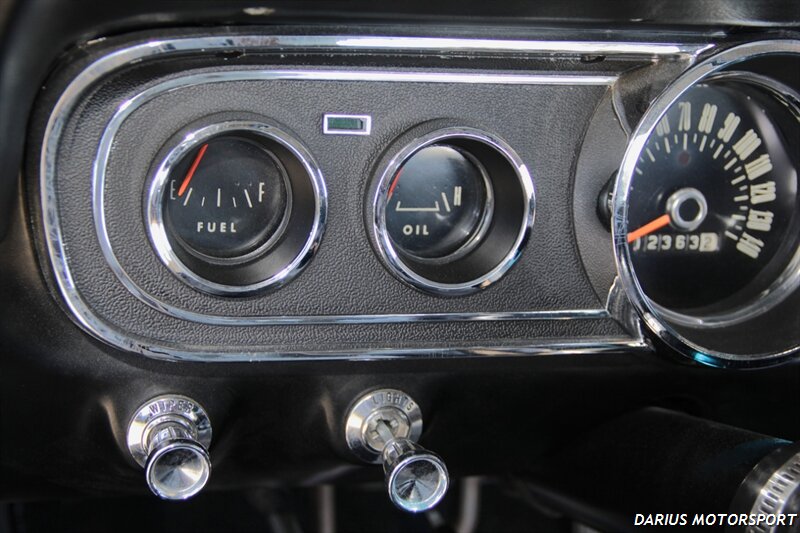

NEW INSTRUMENT CLUSTER BEZEL

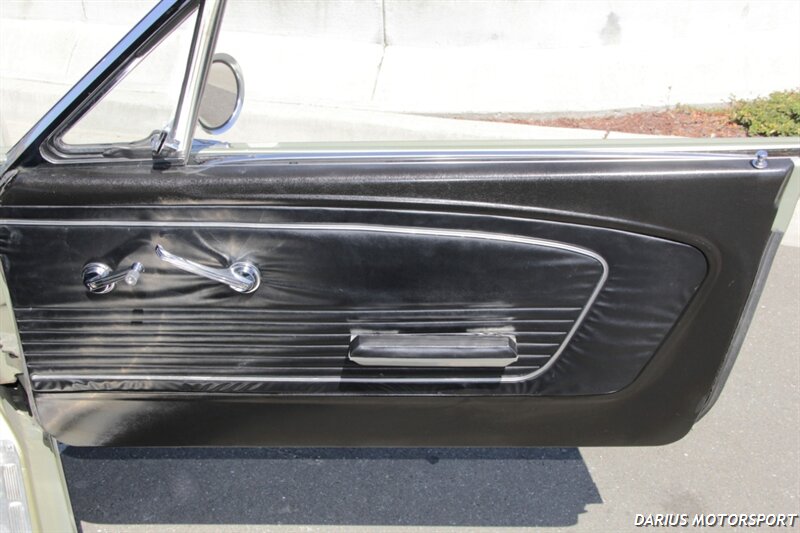

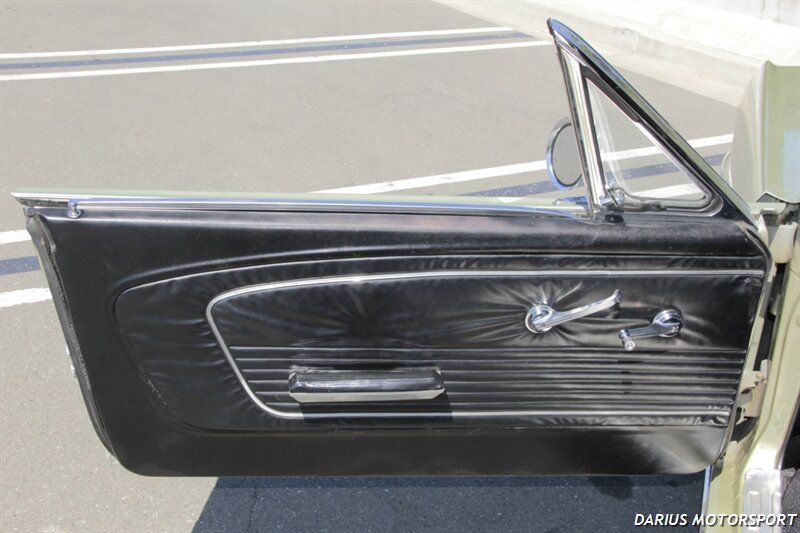

NEW KICK PANELS CARDS AND DOOR HARWARE
NEW WINDOW REGULATORS AND SCISSORS
NEW HEATER CORE

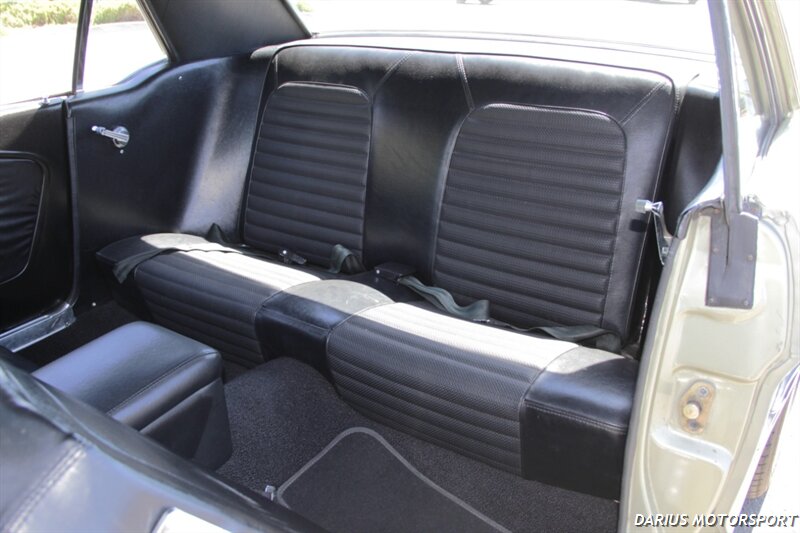

INTERIOR PANELS AND TRIM NEW OR REFURBISHED
L.E.D INTERIOR LIGHTING

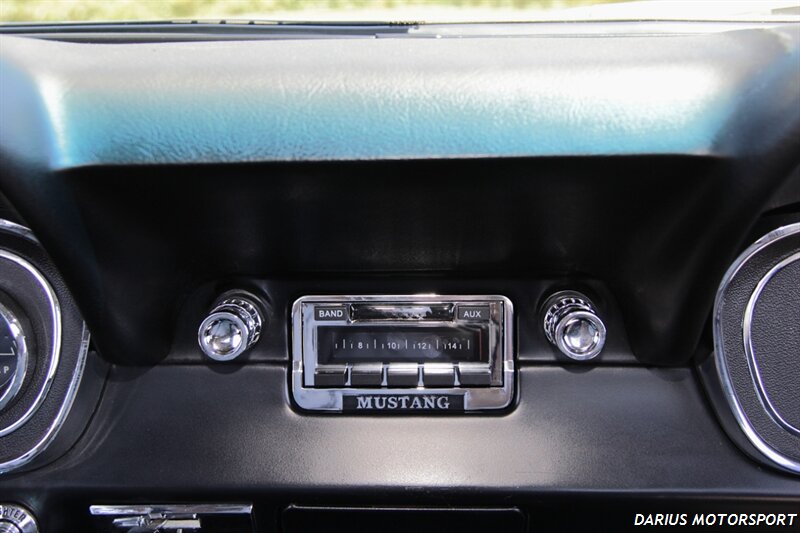

CUSTOM AUTOSOUND ( ELECTRONICALLY TUNED AM/FM RECEIVER WITH AUX INPUT )( CUSTOM MASDE FOR THE GREAT CLASSIC VEHICLES )--CONCOURS SERIES USA-230 **ELECTRONIC VOLUME AND TUNING CONTROLS **HIGH-POWER 50 WATTS x 4 **AUX INPUT **LEFT/RIGHT BALANCE CONTROL **AUTO-ANTENNA DRIVE LEAD **4 CHANNEL RCA PRE-AMP INPUTS **4AM 12FM STATION MEMORY ** SWITCHABLE USA/EURO FREQUENCY SELECTOR **FRONT/REAR FADER
